The PCS in Industrial and Commercial BESS

Introduction:

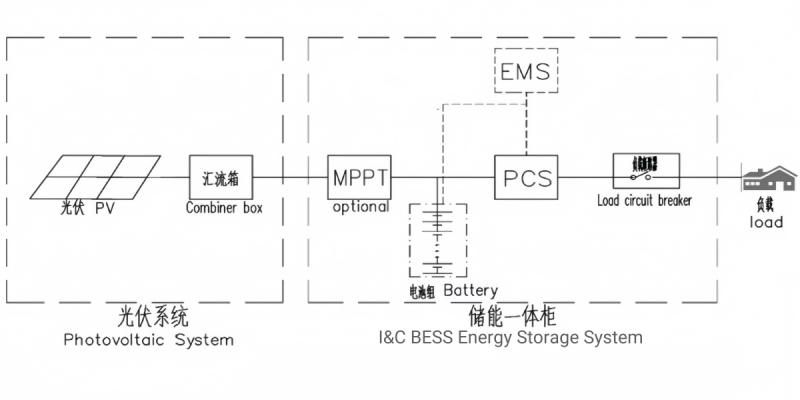

The Power Conversion System (PCS) is an electronic system that facilitates the bidirectional conversion of electrical energy. It acts as an interface between the direct current (DC) output of the battery and the alternating current (AC) required by the grid or end-use applications. The PCS ensures that energy can flow efficiently in both directions—charging the battery from the grid or discharging energy from the battery to the grid or load.

Key Functions of the PCS in a BESS

  1. DC-to-AC Conversion (Inversion):
    • When the battery discharges, the PCS converts the DC power stored in the battery into AC power suitable for the grid or AC loads. This is essential because most electrical grids and devices operate on AC.
  2. AC-to-DC Conversion (Rectification):
    • During charging, the PCS converts AC power from the grid (or renewable sources like solar or wind) into DC power to store in the battery.
  3. Bidirectional Energy Flow:

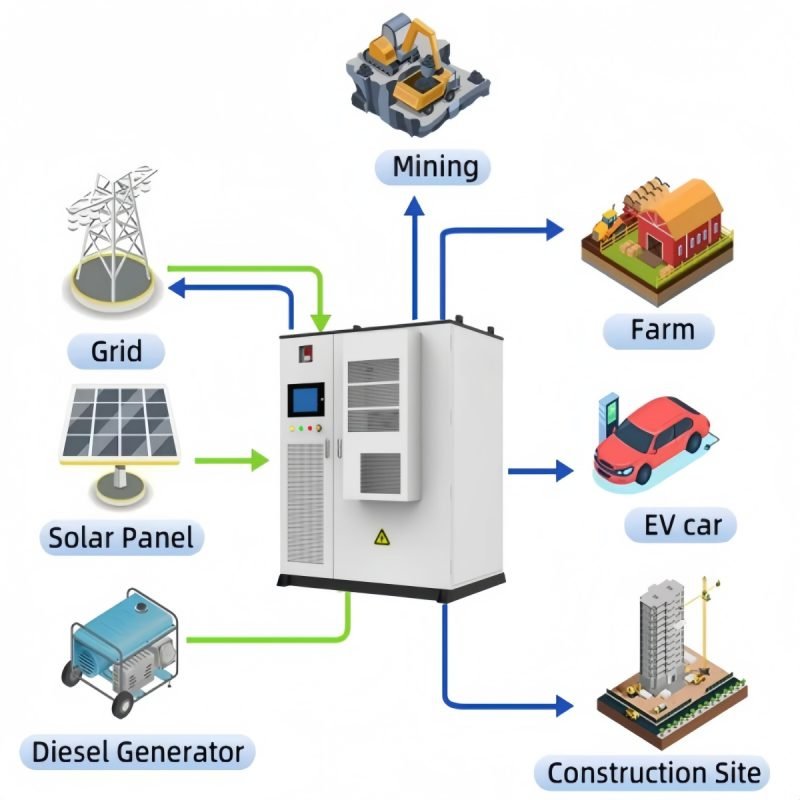

    • The PCS enables two-way energy transfer, allowing the BESS to both store excess energy (e.g., from renewables during peak production) and supply energy back to the grid or load when needed (e.g., during peak demand or outages).
  4. Power Quality Regulation:
    • It adjusts voltage, frequency, and power output to match grid requirements or load specifications, ensuring stability and compliance with grid codes.
  5. Charge/Discharge Control:
    • The PCS controls the rate and timing of battery charging and discharging, often in coordination with a Battery Management System (BMS), to optimize performance and battery lifespan.
  6. Grid Support Functions:
    • It provides services like frequency regulation, voltage stabilization, reactive power control, and peak shaving by dynamically responding to grid signals or local needs.
