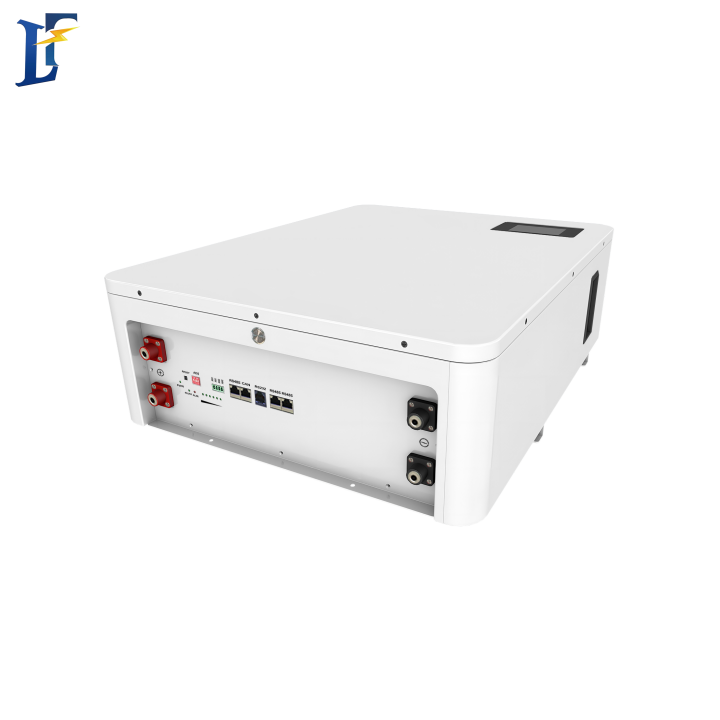

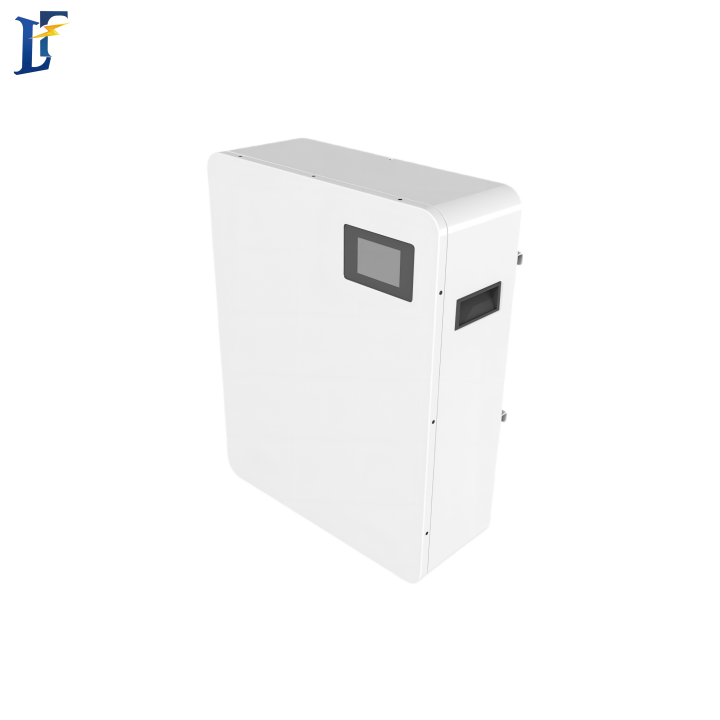

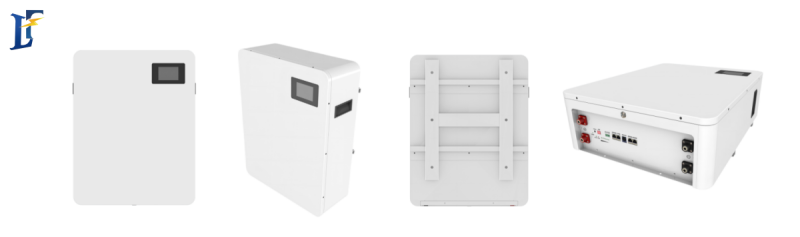

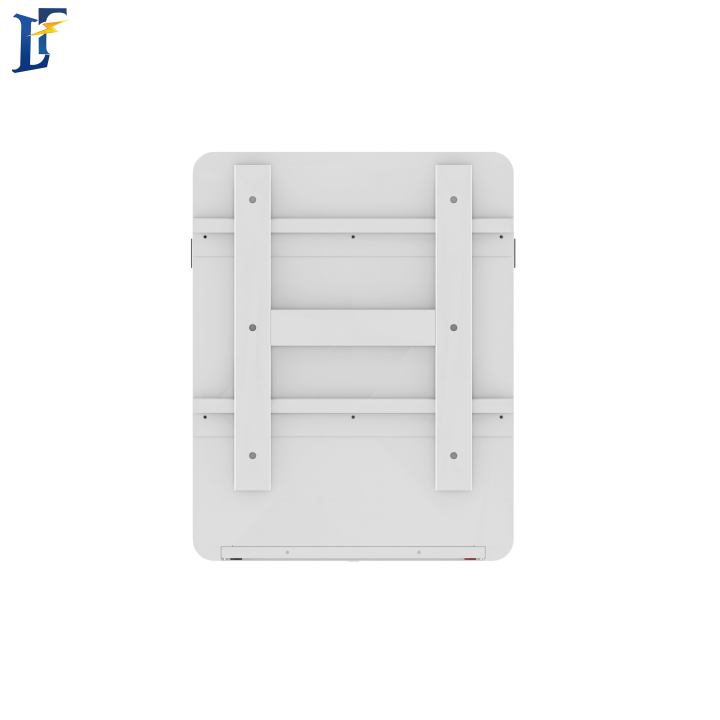

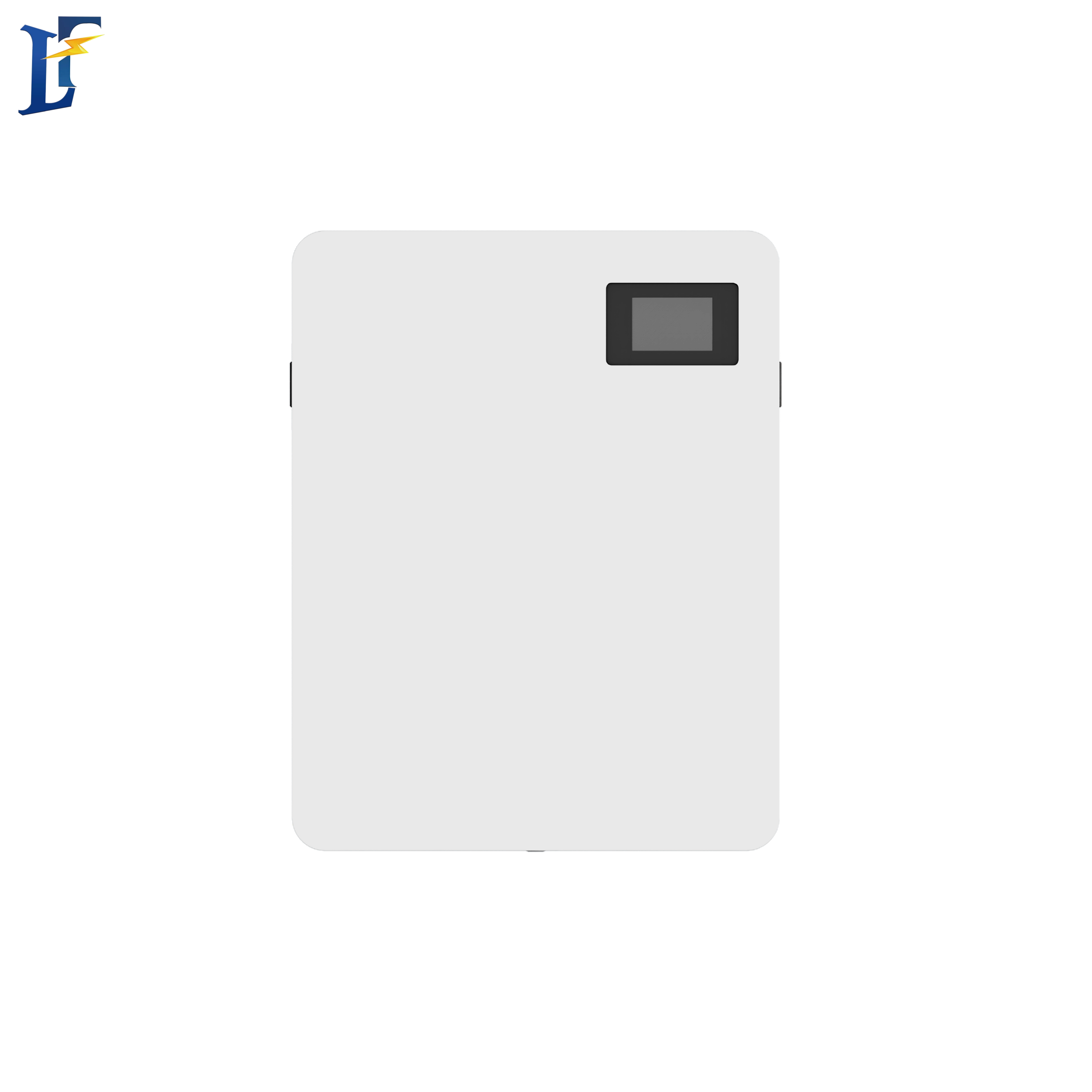

wall mounted LCD touch screen 48V 100Ah Lifepo4 Battery for Home Energy Storage
Product No.: LF-16S100WM
Voltage: 48V (51.2V)
Capacity: 100AH
Lifespan: 8000 cycles time
Communication: CAN & RS485
The LF-16S100WM, a wall-mounted LiFePO4 battery designed for home use. Its clean white finish blends well with modern home decor and adds a fresh look to your space. Made by Lefu, a professional energy solution provider, this battery features: Grade A LiFePO4 cells; Reliable BMS; Wide temperature range; Long cycle life (over 6,000 cycles); CAN & RS485 communication
It works with most popular inverters, including GoodWe, Growatt, Deye, Huawei, and more. Contact us to learn about custom options for your needs.
wall mounted LCD touch screen 48V 100Ah Lifepo4 Battery for Home Energy Storage Technical Specification
| Product Description | Product parameters | |||
| Product model | LF8S100BL-V: | LF16S100BL-V | LF16S200BL-V | LF16S230BL-V |
| Cells in series | 8S | 16S | 16S | 16S |
| Rated energy(Kwh) | 2.56 | 5.12 | 10.24 | 11.77 |
| Rated voltage (V) | 25.6 | 51.2 | 51.2 | 51.2 |
| Charging Voltage (V) | 29.2 | 58.4 | 58.4 | 58.4 |
| Discharge cut-off voltage (V) | 21 | 42 | 42 | 42 |
| Standard Charge Curent (A) | 20 | 20 | 40 | 46 |
| Maximum Charging Current (A) | 100 | 100 | 100 | 200 |
| Maximum Discharge Current (A) | 100 | 100 | 100 | 200 |
| Cycle life | ≥ 6000 times @ 80% DOD, 25℃ | |||
| Methods of Communication | CRS232/RS485/CAN | |||
| Charging temperature | 0-60°C | 0-60℃℃ | 0~60℃C | 0-60°C |
| Discharge temperature | -10-65℃℃ | -10~659C | -10~65℃℃ | -10~659C |
| How it is displayed | touch screen | touch screen | touch screen | touch screen |
| Product Dimensions (LxWxHmm) | 440x170x350 | 440x170x560 | 450x245x670 | 450x245x670 |
| Net Weight (kg) | 23 | 41 | 89 | 93 |
| Packing Dimensions (LxWxHmm) | 512x425x252 | 635x512x252 | 750x520x425 | 750x520x425 |
| Gross Weight (kg) | 25 | 54 | 108 | 111 |
Product Performance:
- Standard Voltage: 51.2V
- Nominal Capacity: 100Ah
- Operating Voltage: 42V-58.4V
- Standard Charging Current: 100A
- Maximum Charging/Discharging Current: 100A
- Operating Temperature Range: 0-40°C (Charging), -20-40°C (Discharging)
- Storage Temperature: -10°C to 35°C (1 month), 25±2°C (3 months), 65%±20%RH
- Cycle Life: 6000 cycles @25°C, 50A charge/discharge current, 80% DOD, Standard capacity retention 80%
- Communication Method: CAN & RS485
- Waterproof Rating: IP20
- Humidity Range: 5-95%
- Net Dimensions: 440×170×350
- Net Weight: 46kg
