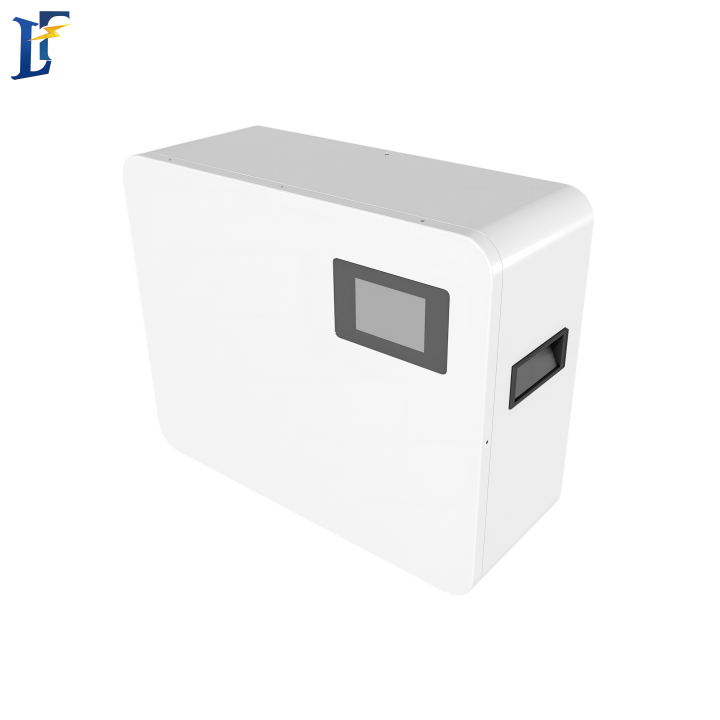

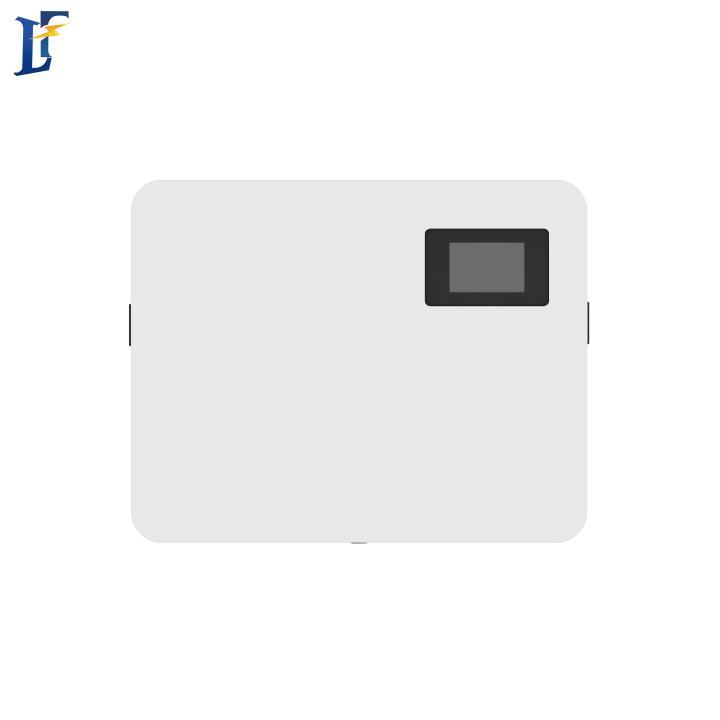

wall mounted LCD touch screen 24V 100Ah Lifepo4 Battery for Home Energy Storage
Product No.: LF-08S100WM
Voltage: 24V (25.6V)
Capacity: 100AH
Lifespan: 8000 cycles time
Communication: CAN & RS485
The LF-08S100WM is an elegantly designed, wall-mounted LiFePO4 battery tailored for home use. Lefu, a professional manufacturer, specializes in providing customized energy solutions. Our product features premium Grade A LiFePO4 battery cells, a dependable Battery Management System (BMS), a wide operating temperature range, an impressive cycle life (over 6,000 cycles), and versatile communication options (CAN & RS485). Contact us to explore custom configurations tailored to your needs.
wall mounted LCD touch screen 24V 100Ah Lifepo4 Battery for Home Energy Storage Technical Specification
| Product Description | Product parameters | |||
| Product model | LF8S100BL-V: | LF16S100BL-V | LF16S200BL-V | LF16S230BL-V |
| Cells in series | 8S | 16S | 16S | 16S |
| Rated energy(Kwh) | 2.56 | 5.12 | 10.24 | 11.77 |
| Rated voltage (V) | 25.6 | 51.2 | 51.2 | 51.2 |
| Charging Voltage (V) | 29.2 | 58.4 | 58.4 | 58.4 |
| Discharge cut-off voltage (V) | 21 | 42 | 42 | 42 |
| Standard Charge Curent (A) | 20 | 20 | 40 | 46 |
| Maximum Charging Current (A) | 100 | 100 | 100 | 200 |
| Maximum Discharge Current (A) | 100 | 100 | 100 | 200 |
| Cycle life | ≥ 6000 times @ 80% DOD, 25℃ | |||
| Methods of Communication | CRS232/RS485/CAN | |||
| Charging temperature | 0-60°C | 0-60℃℃ | 0~60℃C | 0-60°C |
| Discharge temperature | -10-65℃℃ | -10~659C | -10~65℃℃ | -10~659C |
| How it is displayed | touch screen | touch screen | touch screen | touch screen |
| Product Dimensions (LxWxHmm) | 440x170x350 | 440x170x560 | 450x245x670 | 450x245x670 |
| Net Weight (kg) | 23 | 41 | 89 | 93 |
| Packing Dimensions (LxWxHmm) | 512x425x252 | 635x512x252 | 750x520x425 | 750x520x425 |
| Gross Weight (kg) | 25 | 54 | 108 | 111 |
Product Performance:
- Standard Voltage: 25.6V
- Nominal Capacity: 100Ah
- Operating Voltage: 21V-29.2V
- Standard Charging Current: 100A
- Maximum Charging/Discharging Current: 100A
- Operating Temperature Range: 0-40°C (Charging), -20-40°C (Discharging)
- Storage Temperature: -10°C to 35°C (1 month), 25±2°C (3 months), 65%±20%RH

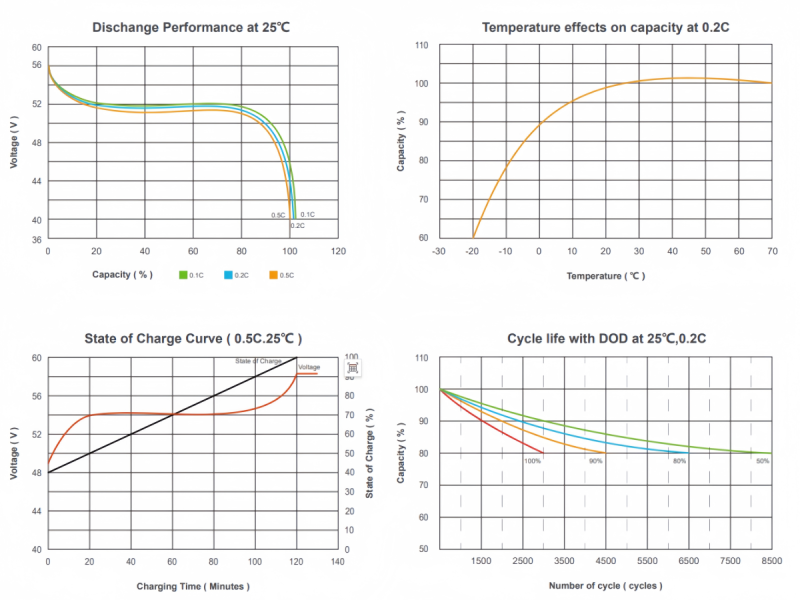

- Cycle Life: 6000 cycles @25°C, 50A charge/discharge current, 80% DOD, Standard capacity retention 80%
- Communication Method: CAN & RS485
- Waterproof Rating: IP20
- Humidity Range: 5-95%
- Net Dimensions: 440×170×350
- Net Weight: 23kg
