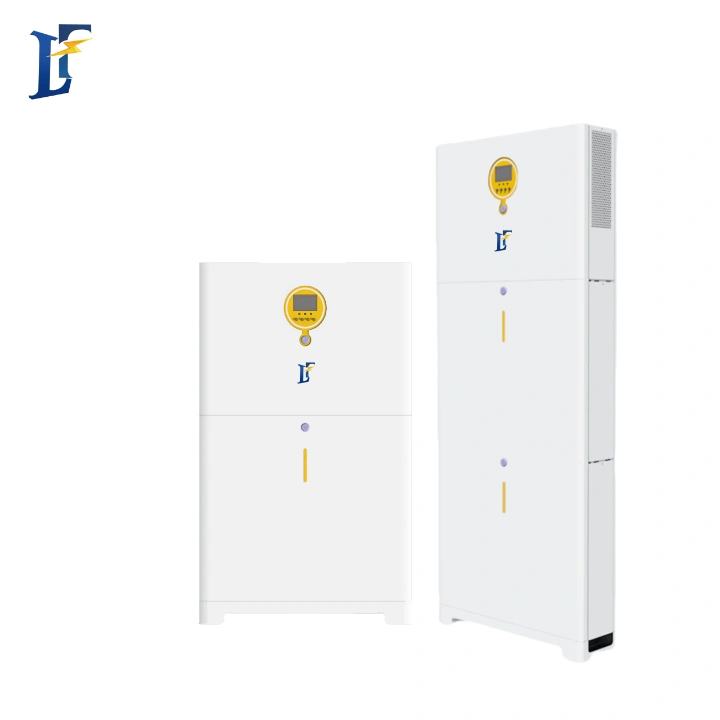

Lefu Stackable Lifepo4 Battery 5KW 10KW 15KW with Home inverter 110V 220V 50Ah All-in-one BESS Solar energy Storage system
Stackable lifepo4 battery all in one system hot selling for wholesaler.
Product No.: LF-AIO-V1050
Power:10KW
Capacity: 50AH
Lifespan: 6000 cycles time
Communication: CAN & RS485
It use Grade A LiFePO4 cells and smart BMS for dependable, long-lasting performance. It’s user-friendly . Clients can use it right away, with real-time data available via WiFi on the app or a clear LCD screen. The system scales easily: connect up to four batteries for 20.48kWh or two systems for double the power. This lets resellers meet growing demand without hassle.It’s flexible, with multiple charge and discharge options, making it a great fit for wholesaler and installers serving diverse clients.

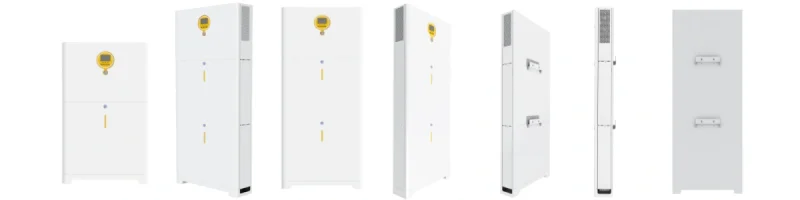

stackable lifepo4 battery all in one Solar energy Storage system
| Power Module Data | |||
| Inverter Battery | Voltage | 220V | 110V |
| Rated output power | 10,000 VA | 5,000 VA | |
| Maximum peak power | 10,000 VA | 10,000 VA | |
| Factor | 1 | 1 | |
| Rated output voltage (Vac) | 230 Vac | 120 Vac | |
| Frequency | 50 Hz | 60 Hz | |
| Automatic switching cycles | <10 ms | <10 ms | |
| THD | <3% | <3% | |
| AC charging | Maximum AC charging power | 3, 150 W | 2, 100 W |
| AC charging current range | 0~60 A | 0~40 A | |
| Rated input voltage | 220/230 Vac | 110/ 120 Vac | |
| Input voltage range | 90~280 Vac | 90~ 140 Vac | |
| AC output | Rated output power | 5,000 W | 5,000 W |
| Maximum output current | 30 A | 50 A | |
| Frequency | 50 Hz | 60 Hz | |
| Overload current | 35 A | 55 A | |
| PV Charging | Solar charging type | MPPT | MPPT |
| Maximum output power | 5,000 W | 5,000 W | |
| PV charging current range | 0~80 A | 0~80 A | |
| PV operating voltage range | 120~500 V | 120~500 V | |
| MTTP voltage range | 120~450 V | 120~450 V | |
| Common Data | Operating temperature range | – 15℃~55℃ | – 15℃~55℃ |
| Storage temperature range | -25℃~60℃ | -25℃~60℃ | |
| Humidity range | 5%~95% | 5%~95% | |
| Nominal operating altitude | <2,000 m | <2,000 m | |
| Cooling method | Forced air cooling | Forced air cooling | |
| noises | 60 dB （A） | 60 dB （A） | |
| Degree of protection | IP20 | IP20 | |
| authentication | CE | CE | |
| EMC certification level | EN61000 | EN61000 | |
| Total weight | 30 Kg | 30 Kg | |
| Dimensions (L×D×H) | 580×145×400 | 580×145×400 | |
| Standards:UN38.3, MSDS, UL1973, RoHS,IEC62619:2017, EN IEC61000-3-2, EN IEC61000-6-1 | |||
stackable lifepo4 battery all in one Solar energy Storage system 5KW 10KW 15KW 110V 220V Lifepo4 50Ah
This system supports off-grid, hybrid, and on-grid setups.
It’s ideal for wholesalers, installers, and energy solution providers.
Flexible charge and discharge modes suit various client requirements.
Grade A LiFePO4 cells ensure safety and long life.
Smart BMS protects the system and minimizes maintenance costs.
Real-time data via WiFi or LCD simplifies customer service.
Pre-configured setup reduces installation time for professionals.
Scalable design supports up to 20.48kWh per unit.
Link two systems to double energy capacity for larger projects.
At only 15cm wide, it saves space at client sites.
A plug-and-play design speeds up commercial deployment.
Helps resellers meet market demand with ease and confidence.
Boost your portfolio with a reliable, in-demand energy product.
Offer clients a high-tech, future-ready storage solution.
Partner with us to grow your B2B energy business.
