single phase Inverter Off Grid With 6KW 48V 100A for Home Use


Brand:LeFu New Energy
Model: LF-PF 6000 ES Plus

  • Plug-and-Play terminal for PV port
  • Dual MPP trackers · Maximum PV input voltage up to 500VDC
  • Configurable grid or solar input priority
  • Parallel for scalability
  • Dust-proof filter for harsh environment
  • Two AC input terminals with integrated transfer switch

This single-phase inverter features dual MPP trackers with a 500VDC PV input and configurable grid or solar input priority. This single inverter offers parallel scalability for system growth and a dust-proof filter for reliable performance in tough conditions. With two AC input terminals and an integrated transfer switch, it ensures easy power management and seamless integration.

Inquiry Now
DatasheetLF-PF 6000 ES Plus
Battery Voltage48VDC
Battery TypeLithium/Lead-acid
Inverter Output
Rated Power6000VA/6000W
Parallel CapabilityYes, 6 units maximum
AC Voltage Regulation (Battery Mode)230VAC ± 5% @ 50/60Hz
Surge Power12000VA
Efficiency (Peak)93%
WaveformPure sine wave
Transfer Time10ms typical，20ms Max
Solar Charger
Maximum PV Array Power8000W
MPPT Range @ Operating Voltage120VDC ~ 450VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker2/1
Max. input current per MPP tracker16A
Maximum PV Array Open Circuit Voltage500VDC
Maximum Solar Charge Current100A
AC Charger
Charge Current80A
AC Input Voltage230VAC
Selectable Voltage Range170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range50Hz/60Hz (Auto sensing)
Physical
Protection DegreeIP20
Dimension (W/H/D)460/395/132mm
Net Weight (kgs)13.5
Operating Environment
Humidity5% to 95% Relative Humidity(Non-condensing)
Altitude<2000m
Operating Temperature0°C – 55°C
Storage Temperature-15°C  – 60°C

specific Description

  • This single-phase inverter is designed for residential and small commercial solar systems, offering a practical balance of performance, flexibility, and durability. It’s equipped with advanced features to support efficient energy conversion and smooth system integration.
  • Key Features:
    • Plug-and-Play PV Terminal
      To begin with, installation is quick and easy thanks to the user-friendly plug-and-play PV connection, which helps reduce setup time and labor costs.
    • Dual MPPT (Maximum Power Point Tracking)
      Moreover, the inverter supports two independent MPPTs to optimize energy harvest from multiple PV strings—ideal for rooftops with different orientations.
    • High PV Input Voltage (Up to 500VDC)
      With a maximum PV input voltage of 500VDC, it supports longer strings and a wider range of panel configurations, which in turn minimizes cabling and installation complexity.
    • Configurable Input Priority
      Depending on your energy setup, you can easily prioritize between grid and solar input, allowing for greater flexibility in energy management.
    • Parallel Operation for Scalability
      Furthermore, the system can be expanded by connecting multiple inverters in parallel, making it adaptable to growing energy demands.
    • Dust-Proof Filter for Harsh Environments
      In addition, it includes a built-in dust-proof filter, ensuring reliable performance even in tough or dusty conditions and reducing maintenance needs over time.

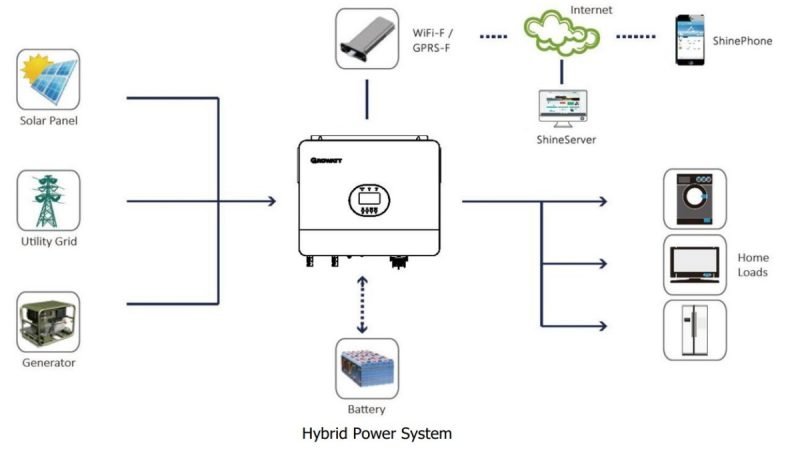

    • Two AC Input Terminals with Integrated Transfer Switch
      Finally, with two AC input terminals and an integrated transfer switch, the inverter simplifies switching between power sources—such as grid and generator—while ensuring continuous and stable power supply
