Lefu Remote Control Mobile DC car EV Charger Charging Station Solar Powered lifepo4 90kw+100kwh

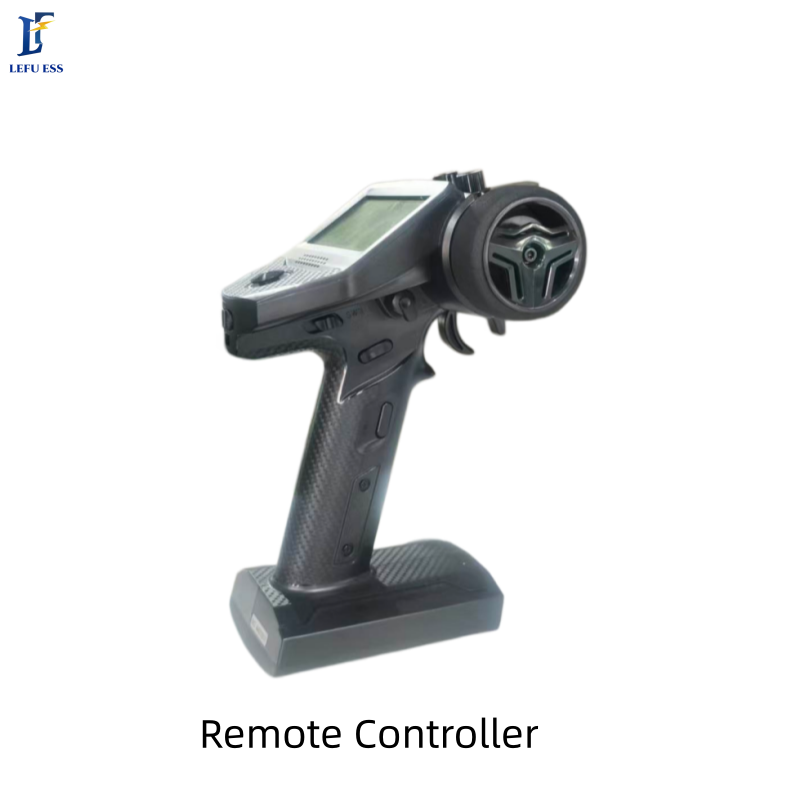

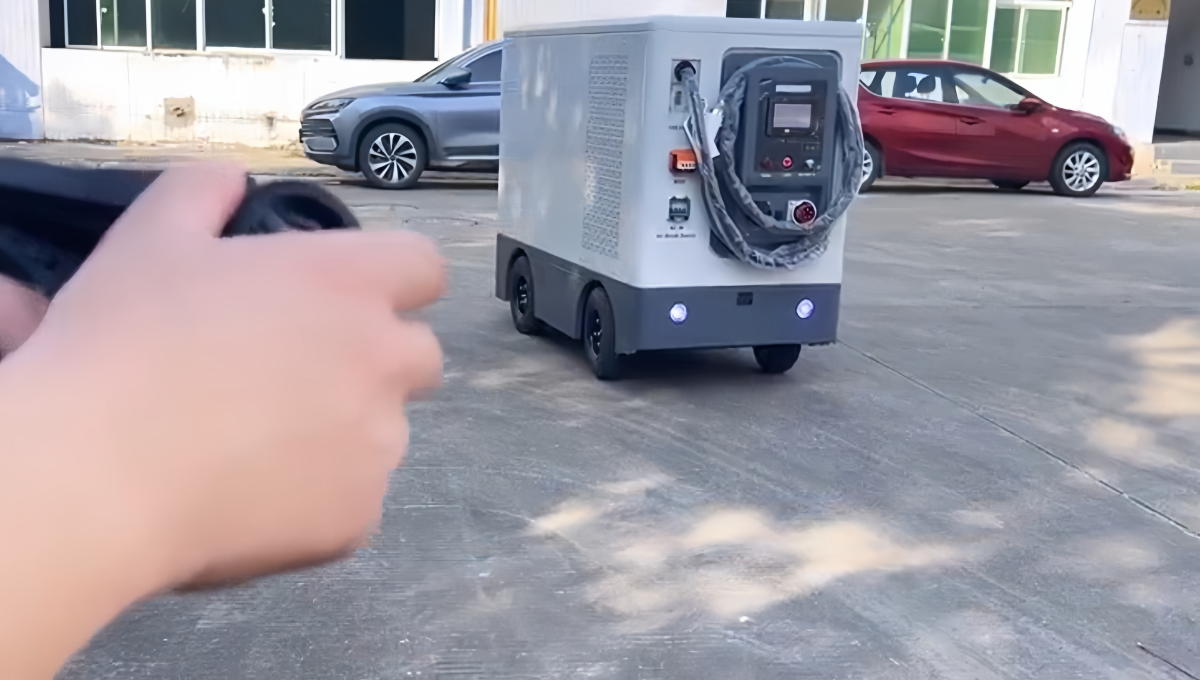

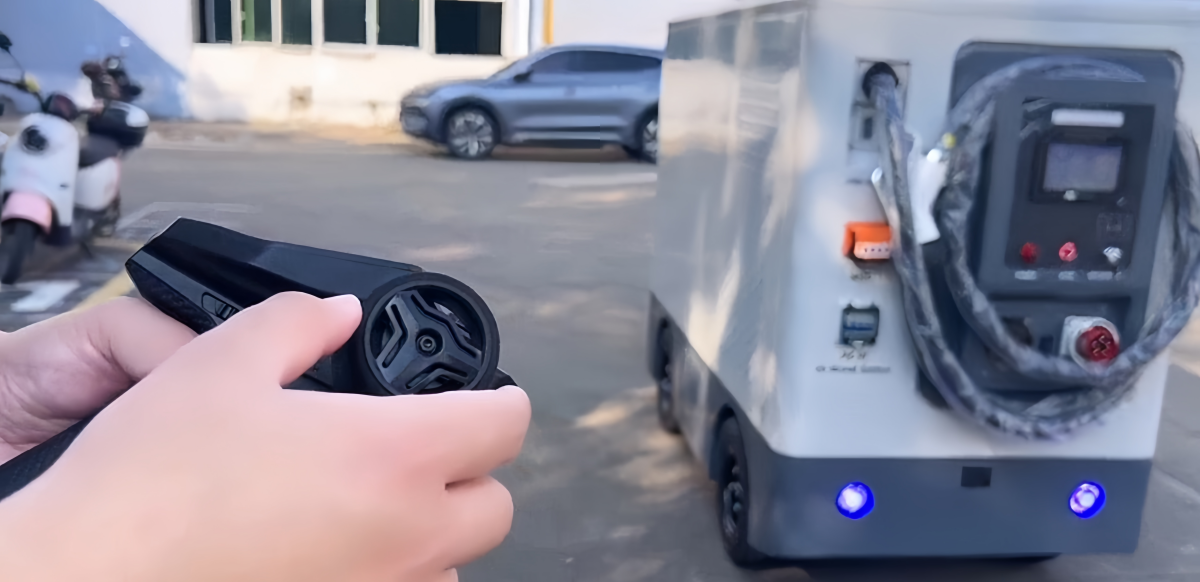

This model EV charging station features fast charging (90 kW), remote-controlled movement, obstacle avoidance, a liquid cooling system, and A-grade battery cells.

Use cases like:

  • Highway roadside emergency rescue
  • Temporary power needs in scenarios such as: shopping mall underground parking lots with poor signal, scenic areas with unfixed parking spaces, remote campsites without grid access, as well as construction sites, large events, and film/TV production sets
  • A “mobile rest station” for ride-hailing drivers – drivers no longer need to go out of their way to find a charging station. They can simply book an on-street fast charging service and recharge during their waiting time between rides, greatly improving efficiency.

Product Description

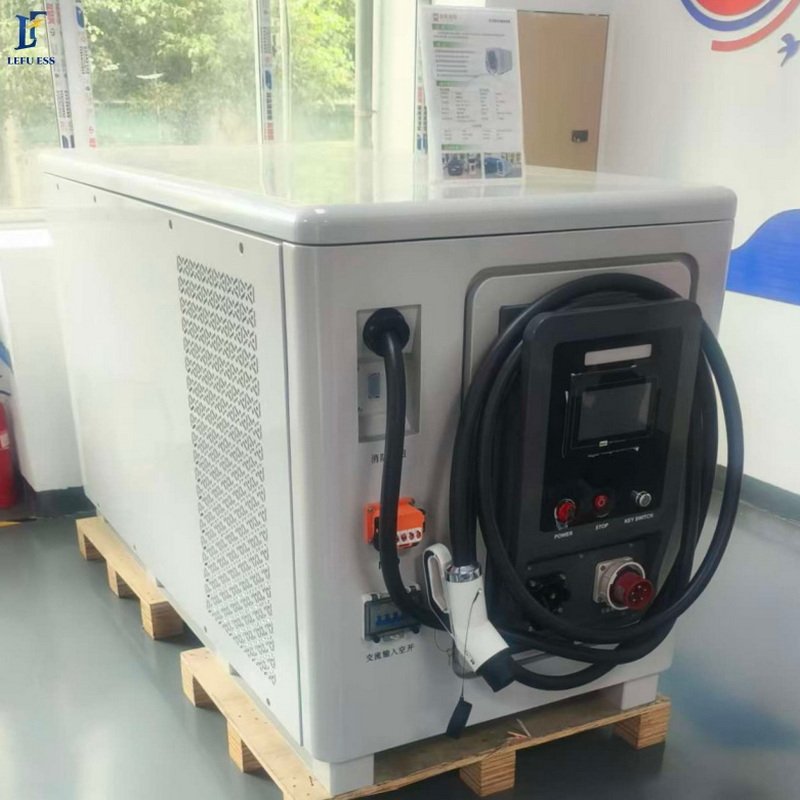

Lefu Remote Control Mobile DC EV Car Charger Charging Station Solar Powered 90kw+100kwh

This model features fast charging (90 kW), remote-controlled movement, obstacle avoidance, a liquid cooling system, and A-grade battery cells.

Use cases like:

1. Highway roadside emergency rescue

2. Temporary power needs in scenarios such as: shopping mall underground parking lots with poor signal, scenic areas with unfixed parking spaces, remote campsites without grid access, as well as construction sites, large events, and film/TV production sets

3. A “mobile rest station” for ride-hailing drivers – drivers no longer need to go out of their way to find a charging station. They can simply book an on-street fast charging service and recharge during their waiting time between rides, greatly improving efficiency.

Key Attributes
  • Integrated Architecture: Seamlessly combines Photovoltaic (PV) generation, Energy Storage System (ESS), and EV Charging piles.
  • Multi-Source Power Coordination: Supports PV input, 3-phase grid connection, and bi-directional power flow.
  • Smart Energy Management: AI-driven EMS optimizes energy flow between solar, battery, grid, and vehicles.
  • Peak Shaving & Valley Filling: Reduces grid impact and electricity costs through intelligent storage dispatch.
  • Scalability: Modular design allows parallel connection of multiple units for high-power demands.
ItemSpecification
Battery Capacity100KWH
Output Power90KW
Output VoltageDC200V~1000V
Output Current0~150A
HMI7″ Touching Screen
Charge ModeSingle Player/OCPP1.6J
Working Temperature-10℃~60℃
Charger Cable Length5M
Charger GunGBT/CCS1/CCS2/CHAdeMO
Recharge Mode 1EV DC Charger
Recharge Mode 2AC 3-PHASE/20KW
Size20359201491MM
Weight≈1256KG
Preotection LevelIP54
Wheelbase (mm)1100
Minimum Ground Clearance (mm)100
Parking slope (%)25
Maximum Grade ability at Full Load (%)20
Minimum turning radius (m)2.5
Drive MethodRear-wheel drive
Front/Rear Brake TypeDrum brake
Parking Brake TypeEPB Electronic Parking Brake (Rear wheels with speed sensors)
Drive Motor Drive Power (kW)3
Full-load range (km)Depends on the vehicle’s total energy storage battery capacity
Speed Range (km/h)1-15km/h
Control Communication MethodCAN2.0B
