3.6kWh LiFePO4 Mobile Suitcase Battery
Perfect for RV life, vanlife, and camping, this elegant white mobile energy storage unit combines high performance with sleek design. Featuring a robust 3.6kWh LiFePO4 battery and 3.6kW output, it delivers reliable, portable power wherever your adventure takes you. Housed in a stylish suitcase form, so it’s easy to transport and built to blend seamlessly with modern outdoor lifestyles.

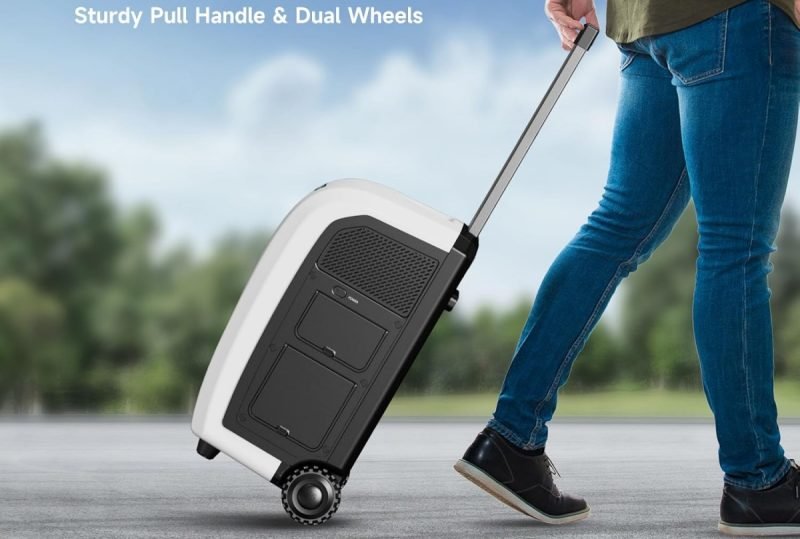

- Portable: Travel suitcase design with wheels
- Compact: Compact size easy carry
- Service-Ready: Ideal for emergency charge
Specs:
- Power: 3.6 kW, 5kW(slightly different shape),
- Capacity: 3.6kWh, 5.12kWh (slight diffrent shape)

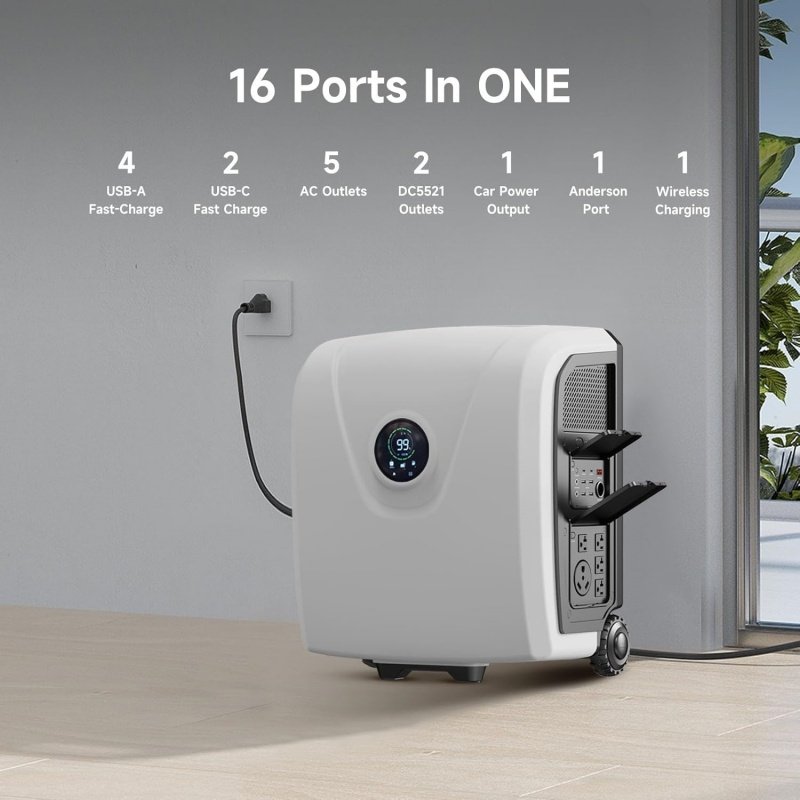

- Connectors: 16PORTS, USB-A, USB-C, AC, DC5521, Car Power Output, Anderson Port, Wireless Charging
- Customization: Full OEM/ODM support
Empower almost everything with LEFU’s innovative solution.
3.6kWh LiFePO4 Mobile Suitcase Battery
Mobile Suitcase LiFePO4 Battery Energy Storage – 3.6kW / 3.6kWh
Perfect for RV life, vanlife, and camping, this elegant white mobile energy storage unit combines high performance with sleek design. Featuring a robust 3.6kWh LiFePO4 battery and 3.6kW output, it delivers reliable, portable power wherever your adventure takes you. Housed in a stylish suitcase form, so it’s easy to transport and built to blend seamlessly with modern outdoor lifestyles.
- Portable: Travel suitcase design with wheels
- Compact: Compact size easy carry
- Service-Ready: Ideal for emergency charge
Specs:
- Power: 3.6 kW, 5kW(slightly different shape),
- Capacity: 3.6kWh, 5.12kWh (slight diffrent shape)
- Connectors: 16PORTS, USB-A, USB-C, AC, DC5521, Car Power Output, Anderson Port, Wireless Charging
- Customization: Full OEM/ODM support
Empower almost everything with LEFU’s innovative solution.V charging services with LEFU’s innovative solution
3.6kWh LiFePO4 Mobile Suitcase Battery
| EU standard basic parameters | ||
| model | Lefu Mobile Max | Lefu Mobile |
| weight | 53.3kg | 48kg |
| size | 566*486*329mm | |
| capacity | 3686.4Wh ，51.2V，16S | 2560wh，51.2V，16S |
| approval standards | CE、ROHS、UN38.3、MSDS、TDG、etc | |
| ups | 10 ms | |

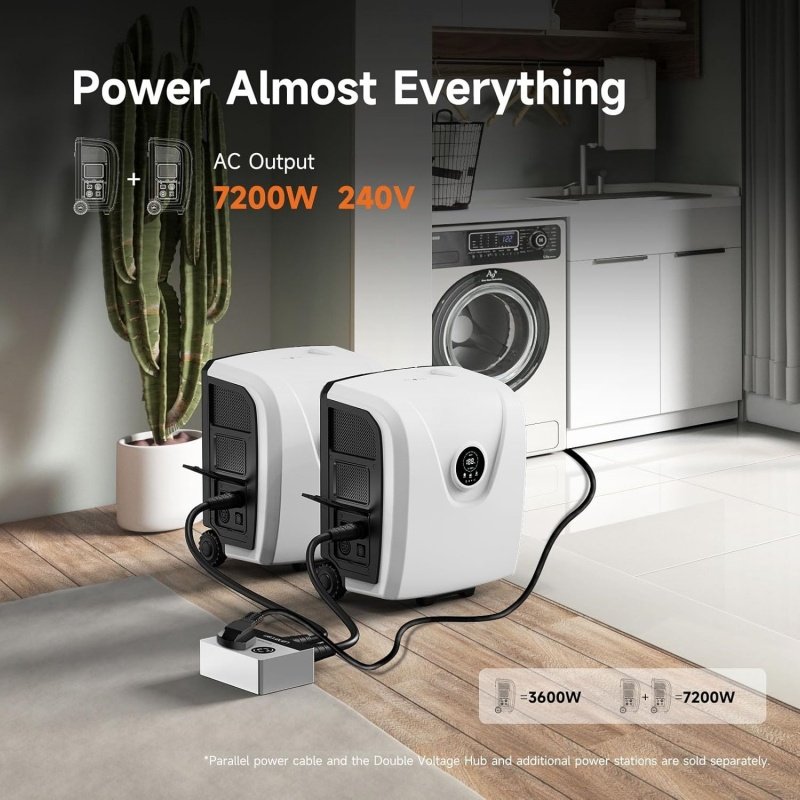

| parallel power | Up to two parallel, 7.2kW | |
| function | Up to two parallel, 4.8kW | |
| APP Connection | LAN WIFl、Bluetooth | |
| Output specifications | ||
| AC output (x5) | 220V~60Hz/50Hz，1*20A3*16A | |
| rated power | 3.6kw | 2.4kw |
| USB-A fast charge(x4) | Support BC1.2,APPLE, Samsung protocol, Qualcomm Qc2.0/QC3.0Huawei FCp fast charge protocol,AFC fast charge protocol, the maximumpower of each channel 18W | |
| Anderson interface | 12V/30A | 30V/20A |
| TYPE-C fast charge(x2) | Support PD3.0 and PpS protocol, one-way 100w*1+ one-way 60W*1,voltage adaptive | |
| DC5521output(x2) | 12V/10A each way, parallel port, the maximum of two outlets at the sametime 120w | |
| cigarette lighteroutput | Parallel with DC5521,the maximum output is 120W, 12V/10A | |
| wireless charging | 15W Max | |
| Ac input | ||
| AC input voltage | 210V-240V~60Hz/50Hz | |
| AC input power | 3200W max(Includes charginggun input) | 1800W max |
| AC maximum charging current | 15.6A(City electric10A max, EVCharger 15.6A max) | 9.6A (City electric9.6A max) |
| diesel generator charging | 2300W max | 1800W max |
| Ac charging gun (3400W) Fastest filling time | 1.4H(Charge to 90% in 1 hour) | |
| city electric Fastestfilling time | 2H(Charge to 90% in 1.6 hours) | 1.8H(Charge to 90% in 1.4 hours) |
| PV charging parameters | ||
| PV charging input | 12V~150V,PV reverse protection | 12V~75V ,PV reverse protection |
| PV charging power | 2400W max | 800W max |
| maximum charging current | 25A | 25A |
| Fastest filling time | 1.9H | 3.6H |
| PV and City electric fastest full time | 1.3H | 1.3H |
| Cell specification | ||
| Cell material | LiFePO4(LiFePO4Square aluminum shell) | |
| cycle life (0.5c Charge-Discharge) | 6000 cycles 280% capacity retention rate, cell energy density 150Wh/kg | |
| Energy conversion efficiency(23°C) | 0.9 | |
| Protection | ||
| BMS protection type | Temperature protection, over discharge protection, over chargeprotection, short circuit protection, over current protection, differentiapressure alarm protection, charge balance protection; Sleep modeprotection | |
| System protection type | PV current limiting/power limiting protection, PV night anti-chargeprotection, mains input over/under voltage protection, batteryover/under voltage protection, load output short circuit protection.radiator over temperature protection, overload protection, PVanti-reverse protection, Ac backfilling protection, battery input ovelcurrent protection, battery input protection, charging short circuit protection | |
