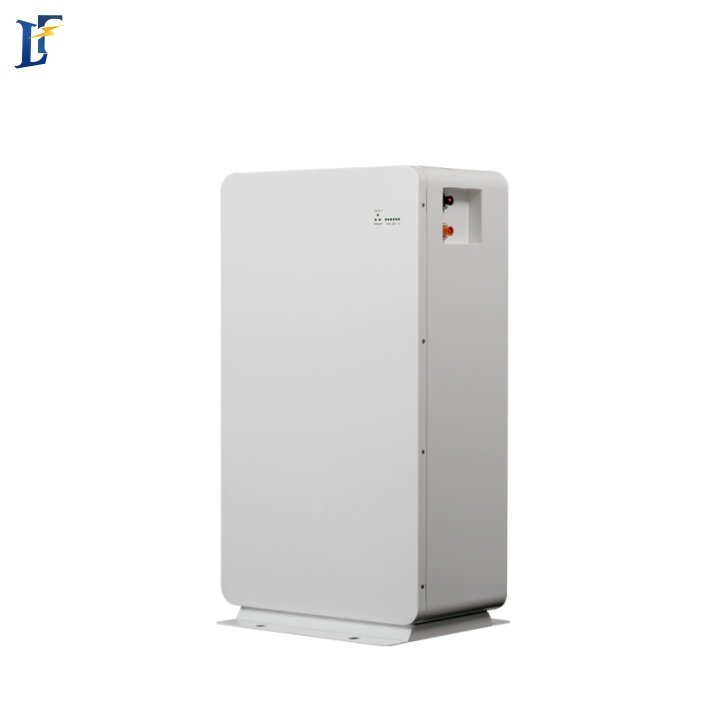

Low-voltage floor-standing storage lithium battery 51.2V 10.2KW

  • Product No.:LF-ELESHELL-10.2K
  • Voltage: 51.2V
  • Cell Type:LFP
  • Rated Energy: 10.24KW
  • Battery Type: Lifepo4
  • Dimension：871.1*519*133

The LF-ELESHELL-10.2K is a 51.2V LiFePo4 battery system designed for residential and commercial energy storage applications. With a rated energy of 10.24kWh, it offers reliable and efficient power backup or daily cycling for solar and off-grid systems.

Built with high-quality LFP cells, the battery delivers long service life, enhanced safety, and consistent performance. Its compact design (871.1 × 519 × 133 mm) allows for easy wall-mount or cabinet integration, making it ideal for both indoor and outdoor installations.

inquiry
LF-ELESHELL10.2KDownload

Tech Specification:

ModelLF-ELESHELL10.2K
Number of cells1P8S*2
Nominal Voltage (V)51.2
Max.Charge /Discharge Current (A)100
Max.Power（W）5120
Weight（KG）92
Temperature.Controlnatural cooling
CommunicationRS232 / RS485 / CAN
Ingress Protection RatingIP54
Relative Humidity≤95%rh
Max. Operating Altitude (m)≤3000m
CertificationUN38.3,CE-EMC,IEC62619,MSDS,ROHS

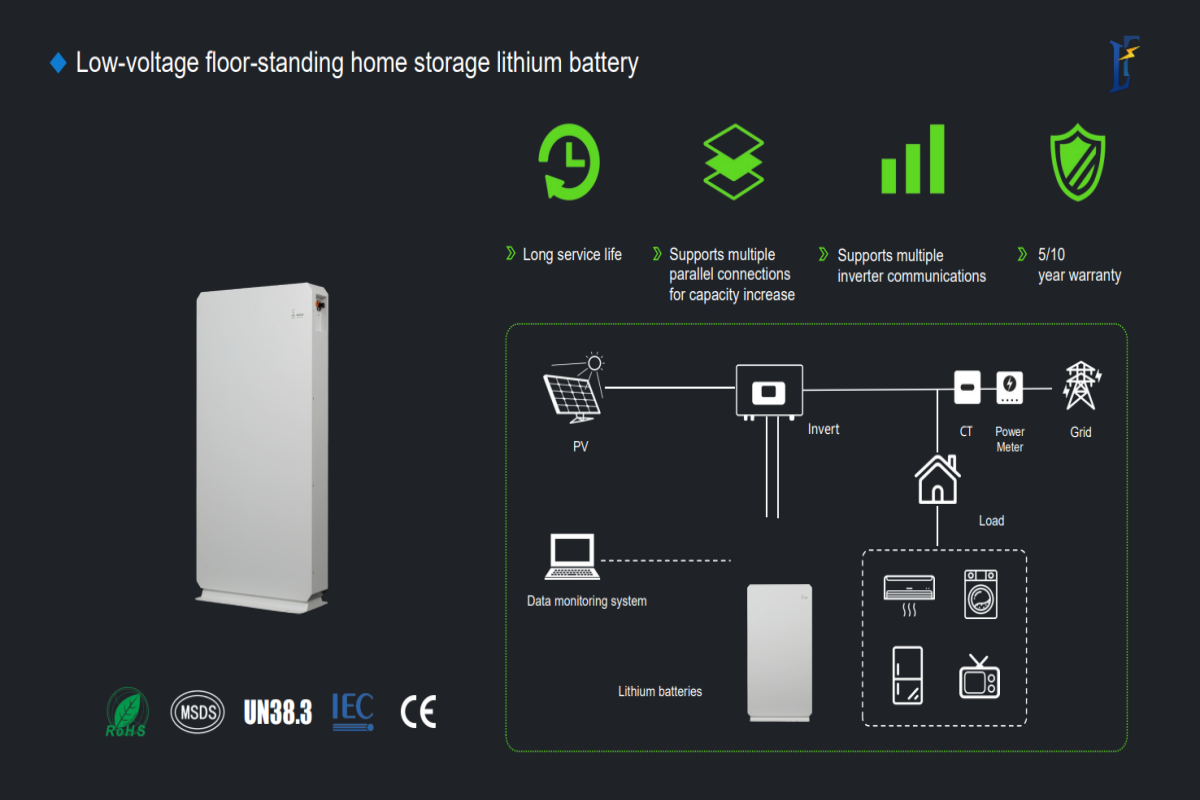

some way of the connection for the low voltage battery.

ntroducing the LF-ELESHELL10.2K: A Scalable and Intelligent Energy Storage Solution for Smart Homes and Commercial Applications

Lefu Power delivers innovation and reliability with the LF-ELESHELL10.2K, a high-performance, low-voltage, floor-standing lithium battery designed for smart energy storage systems. Built on advanced LiFePO₄ (LFP) cell technology, this system provides 10.24kWh of usable capacity and supports up to 15 parallel units, enabling businesses to scale energy storage effortlessly as demand grows.

Moreover, the system integrates seamlessly with multiple inverter brands through RS232, RS485, and CAN communication protocols, ensuring maximum compatibility and flexibility across different setups. At the same time, the LF-ELESHELL10.2K offers real-time data monitoring, empowering installers and system integrators to deliver smarter, more responsive solutions to their end-users.

Thanks to its long cycle life exceeding 6000 cycles (at 80% DOD) and natural cooling system, it guarantees stability and performance in diverse environments, even at altitudes up to 3000m and humidity up to 95%. Furthermore, with IP54 protection, floor or wall-mount options, and global safety certifications including UN38.3, CE-EMC, and IEC62619, it meets rigorous installation and compliance needs.

Whether expanding residential smart grids or powering commercial energy management platforms, enterprises can count on the LF-ELESHELL10.2K to reduce costs, improve efficiency, and accelerate energy transformation—without compromise.

, , ,
