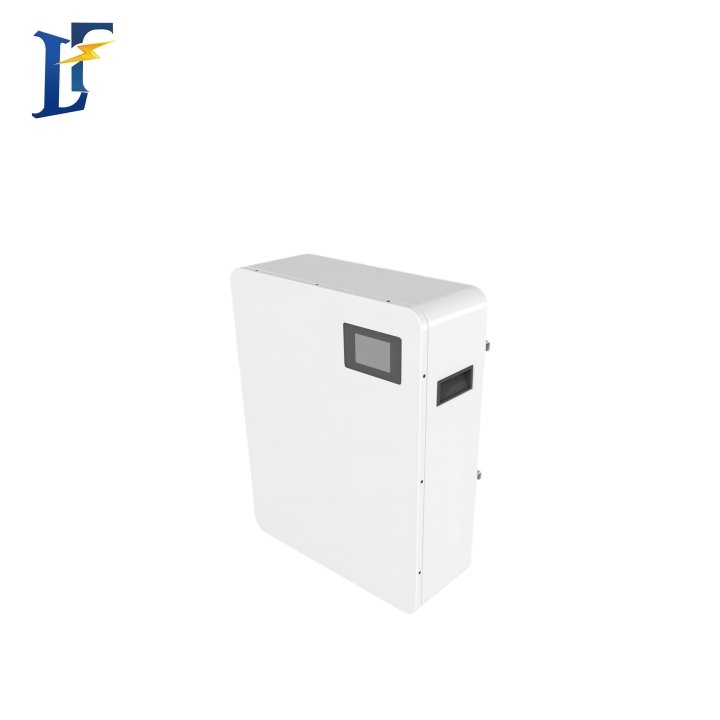

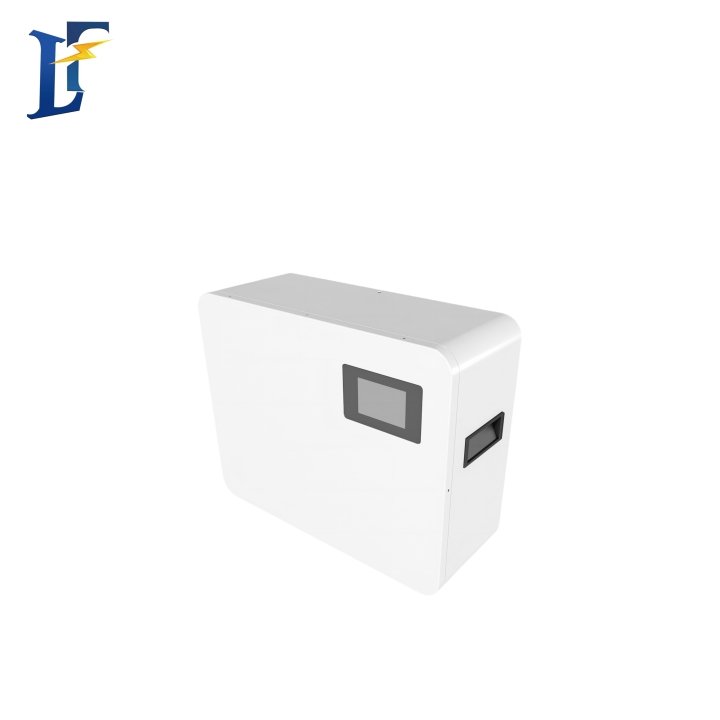

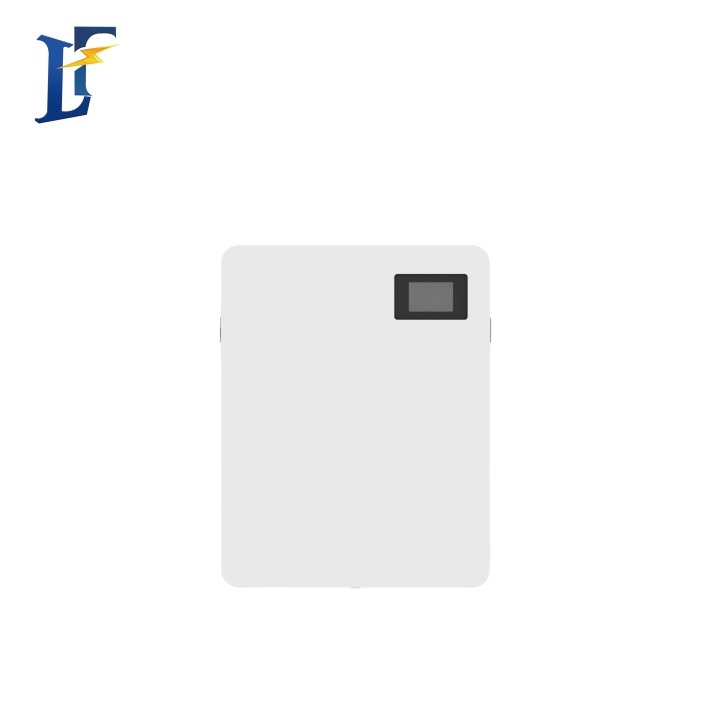

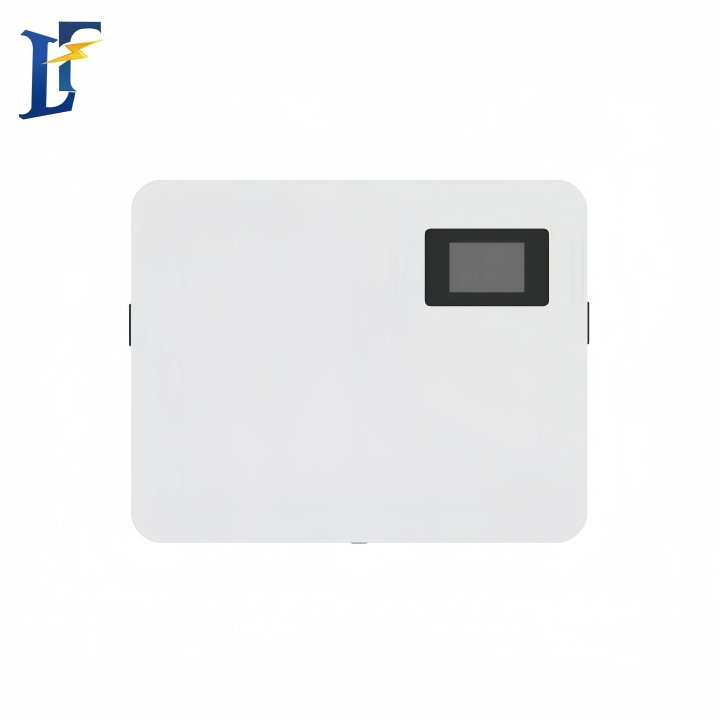

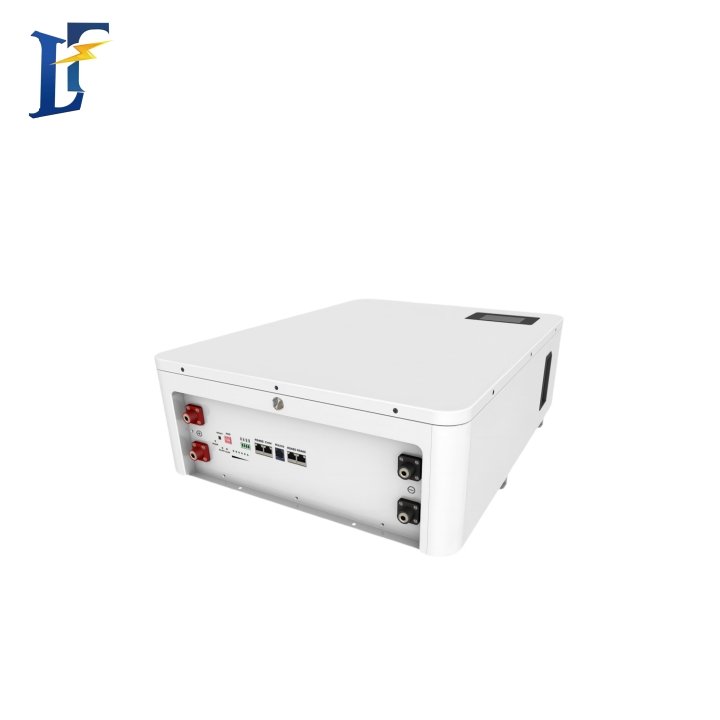

LeFu wall-mounted Lifepo4 25.6V/51.2V solar energy storage battery
LeFu 25V-50V wall-mounted energy storage battery offers versatile voltage options of 25.6V and 51.2V, making it ideal for solar energy storage systems. Built with advanced Lifepo4 battery technology, it provides high energy density, excellent safety, and a long lifespan, ensuring reliable and stable power storage. Its compact wall-mounted design is perfect for both residential and commercial use, saving space and simplifying installation. As a highly efficient Solar Energy Storage Battery, it effectively stores solar power, enhancing energy independence and meeting the diverse needs of users.
Product No.: LF-M08S100BL-V1
Voltage: 25.6V/51.2V
Capacity: 100AH/230AH
Rated Energy: 2.56KWH-11.77KWH
LeFu wall-mounted Lifepo4 25.6V/51.2V solar energy storage battery Technical Specification
| Product model | LF-M08S100BL-V1 | LF-M16S100BL-V1 | LF-M16S200BL-V1 | LF-M16S230BL-V1 |
| Cells in series | 8S | 16S | 16S | 16S |
| Rated energy(KWh) | 2.56 | 5.12 | 10.24 | 11.77 |
| Rated voltage (V) | 25.6 | 51.2 | 51.2 | 51.2 |
| Charging Voltage (V) | 29.2 | 58.4 | 58.4 | 58.4 |
| Discharge cut-off voltage (V) | 21 | 42 | 42 | 42 |
| Standard Charge Current (A) | 20 | 20 | 40 | 46 |
| Maximum Charging Current (A) | 100 | 100 | 100 | 200 |
| Maximum Discharge Current (A) | 100 | 100 | 100 | 200 |
| Cycle life | ≥ 6000 times @ 80% DOD, 25 °C | |||
| Methods of Communication | RS232/RS485/CAN | |||
| Charging temperature | 0~60℃ | |||
| Discharge temperature | -10~65℃ | |||
| How it is displayed | Touch screen | |||
| Product Dimensions (L×W×Hmm) | 440×170×350 | 440×170×560 | 450×245×670 | 450×245×670 |
| Net Weight (Kg) | 23 | 41 | 89 | 93 |
| Packing Dimensions (L×W×Hmm) | 512×425×252 | 635×512×252 | 750×520×425 | 750×520×425 |
| Gross Weight (Kg) | 25 | 54 | 108 | 111 |
LeFu Wall-mounted Energy Storage Battery is a high-performance solution designed to optimize solar energy storage. With voltage options of 25.6V and 51.2V, this battery is flexible enough to meet a range of energy needs, whether residential or commercial. Constructed using Lifepo4 material, it offers excellent safety, long-lasting durability, and superior energy density, providing a reliable storage solution for solar power systems. The battery’s impressive cycle life of 6000 cycles ensures it will serve for many years, reducing the need for frequent replacements.

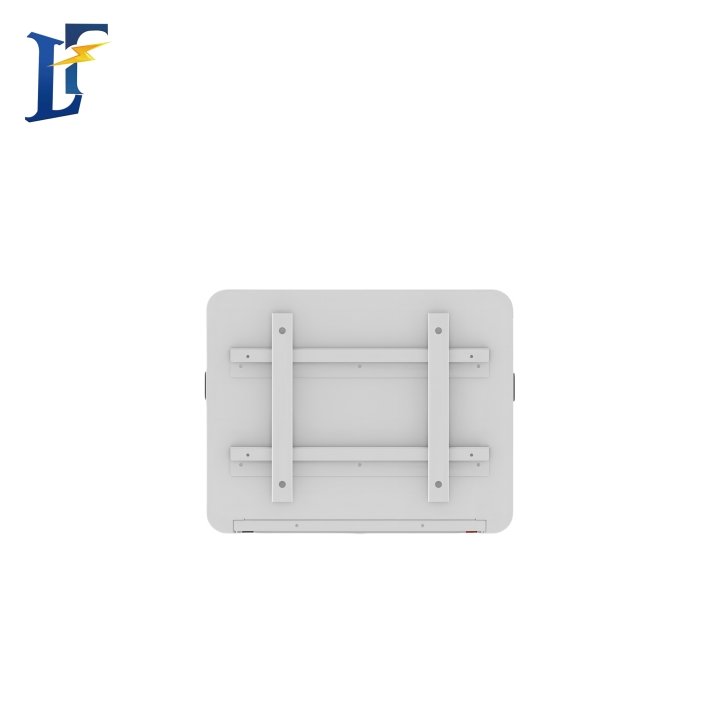

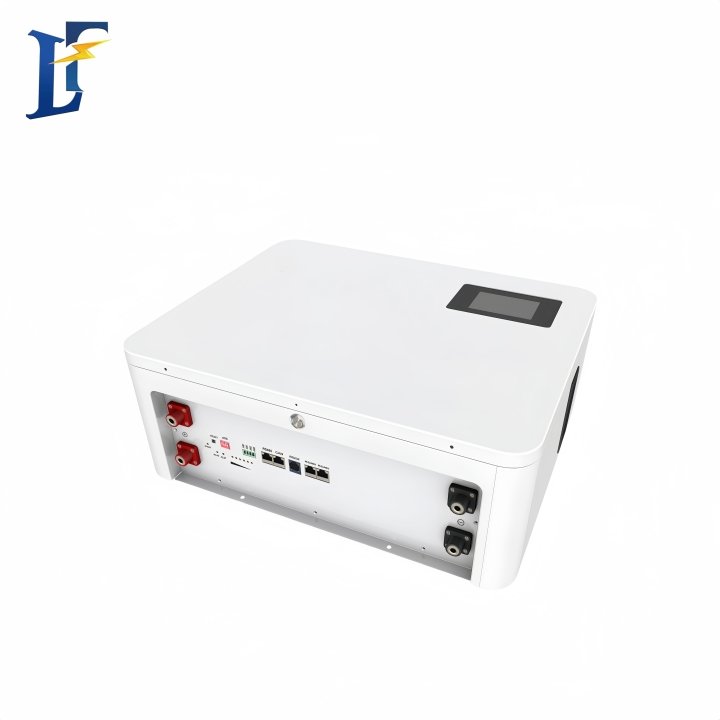

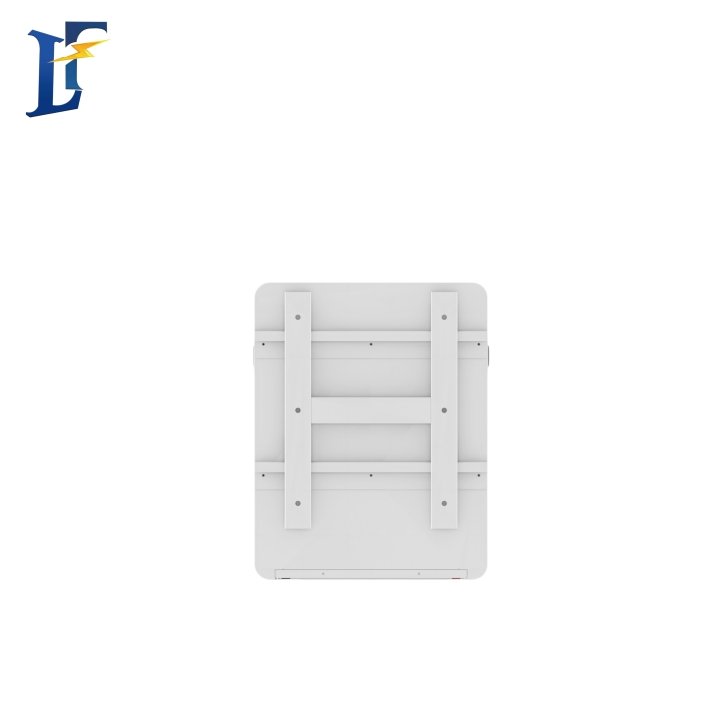

LeFu wall-mounted storage battery is engineered for easy installation and minimal space usage, making it ideal for modern homes or businesses looking to save space. The unit supports various communication methods including RS232, RS485, and CAN, ensuring compatibility with a wide range of solar setups and monitoring systems. Additionally, the built-in touch screen display allows users to conveniently check battery status and performance data in real time.
As a Solar Energy Storage Battery, it efficiently stores excess solar energy, reducing reliance on the grid and enhancing energy independence. LeFu 25.6V/51.2V Storage Battery combines cutting-edge technology and longevity, making it an excellent choice for those looking to invest in sustainable and reliable energy storage.
