The front appereance of the lifepo4 energy storage battery.

Lifepo4 Energy Storage Battery 51.2V 280AH for home use


Lifepo4 Energy Storage Battery:
Product No.: LF-MASON-280L
Voltage: 51.2V
Capacity: 280AH
Lifespan: 6000 cycles time
Communication: CAN & RS485

The LF-MASON-280L is a high-capacity (280Ah) 51.2V energy storage solution, ideal for demanding applications. We are a professional factory providing tailored energy solutions. Benefit from our product’s wide operating temperature, long cycle life (6000+), and versatile communication (CAN & RS485). Contact us for custom configurations.

Inquiry

Lefu 51.2V 280AH Lifepo4 Energy Storage Battery for home use Technical Specification

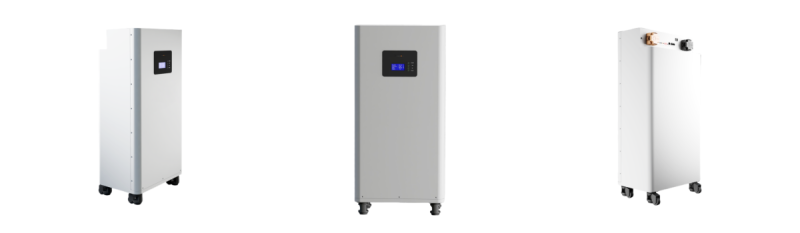

The trible different side of the lifepo4 energy storage battery
ModelLF-MASON-280L
Rated Voltage51.2V
Rated Capacity280AH
Operating Voltage42V-58.4V
Rated Charging Current100A/200A
Max. Discharging Current200A
Operating Temperature0-40°C (charging) -20-40°C (discharging)
Storage Temperature-10°C~35°C (1 month) 25±2°C (3 months)
65%±20% RH
Cycle life6000 CYCLES @25℃ 50A Charge and Discharge Current 70%
Standard Capacity 80% DOD
CommunicationCAN&RS485
IP GradeIP20
Humidity Range5~95%
Size886*416*267MM
Weight113±3KG

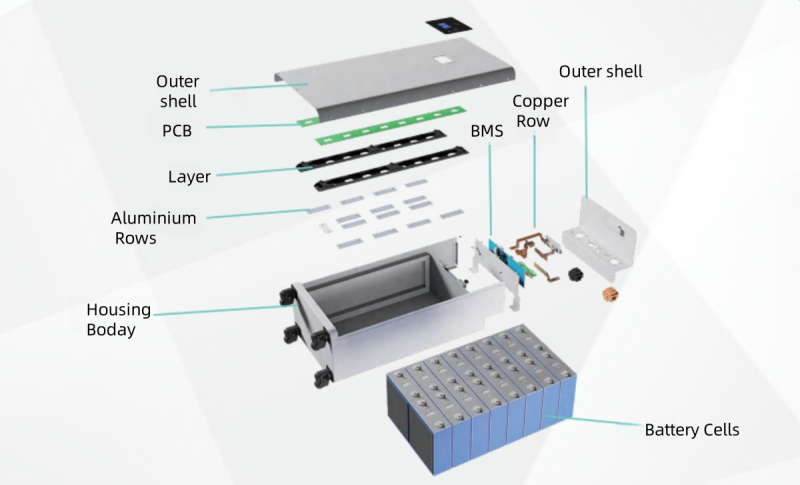

The inner construction of this lifepo4 energy storage battery.

Product Performance:

  • Standard Voltage: 51.2V
  • Nominal Capacity: 280Ah
  • Operating Voltage: 42V-58.4V
  • Standard Charging Current: 100A/200A
  • Maximum Charging/Discharging Current: 200A
  • Operating Temperature Range: 0-40°C (Charging), -20-40°C (Discharging)
  • Storage Temperature: -10°C to 35°C (1 month), 25±2°C (3 months), 65%±20%RH
  • Cycle Life: 6000 cycles @25°C, 50A charge/discharge current, 70% DOD, Standard capacity retention 80% DOD
  • Communication Method: CAN & RS485
  • Waterproof Rating: IP20
  • Humidity Range: 5-95%
  • Net Dimensions: 886 * 416 * 267mm
  • Net Weight: 113±3kg
Component Options:
  • 206/230Ah Cell Options:
    • CALB 230Ah (53.7 * 173.6 * 200mm)
    • LISHEN 202Ah (53.7 * 173.6 * 200mm)
    • EVE 304Ah (72 * 174 * 204mm)
    • EVE 210Ah (72 * 174 * 204mm)
  • 230Ah Power Kit Option
Visual Representation:
  • The image also includes a diagram showing the internal components of the battery, including:
    • Battery Top Cover
    • Panel Top View
    • PCB Board
    • Pressure Bar
    • Aluminum Row
    • Outer Casing
    • Battery Pack
Key Observations:
  • This system is designed for a variety of energy storage applications, with a focus on delivering reliable and efficient power.
  • The system has a robust cycle life.
  • The system has various cell options.
  • The system has smart communication.
