Industrial and Commercial 215kwh Energy Storage Container Cabinet Hybird Inverter 100KW High Voltage LiFePO4 Battery solar system
Cell Model : LFP 3.2V/280Ah
Rated Capacity : 215KWH
Rated Charge : 100kW
Rated Voltage : AC400V

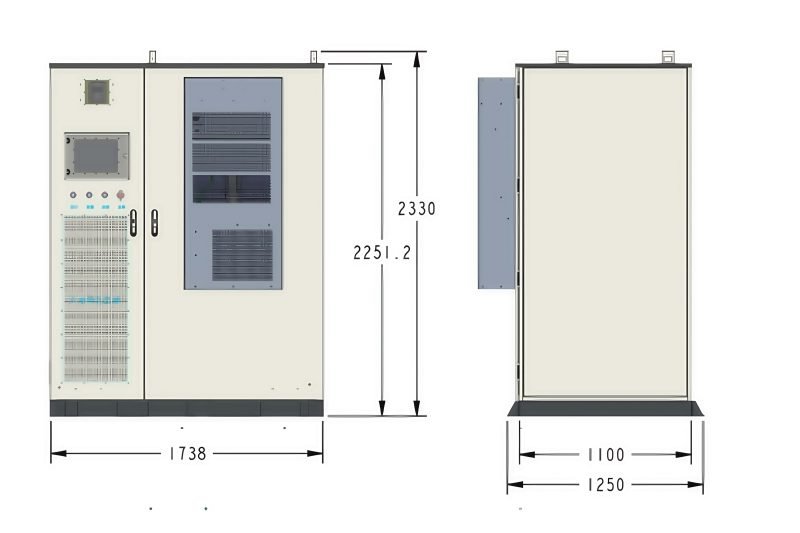

Dimensions (W × D× H) : 1740×1100×2330mm
LeFu High Voltage Industrial Commercial Energy Storage Cabinet is designed to provide reliable and scalable energy solutions for diverse C&I applications. With a modular structure, it adapts flexibly to different scenarios, supports multi-system parallel connections, and accommodates a wider power range. This system ensures the quick deployment of projects while seamlessly switching between grid-connected and off-grid modes to guarantee consistent energy supply.
The highly integrated design prioritizes safety and reliability while being easy to transport and install. Whether for industrial facilities or commercial enterprises, this energy storage cabinet delivers optimized performance, making it an ideal choice for businesses looking to enhance energy efficiency and reduce operational costs.
| PVInput(DC) | |
| Maximum Input Power | 10400W |
| Maximum Input Voltage | 500V |
| Starting Voltage | 150V |
| PV Input Voltage Range | 370V(100V~500V) |
| MPPT Voltage Range | 120V~450V |
| MPPT Quantity | 2(1/1) |
| Maximum Input Current | 18A/18A |
| MPPT Operating Voltage Range | 120-430V |
| Output/lnput(AC) | |
| Rated Output Power | 6200W |
| Maximum Output Apparent power | 6600W |
| Rated OutputCurrent | 26.1A |
| Maximum Output Current | 28.7A |
| Grid VoltageType | 230VAC(singlephase) |
| Rated GrdFreauency | 50Hz/60Hz(optional) |
| Total Current Waveform DistortionRate | <3%(rated power) |
| Power Factor Range | >0.99@full power(Adjustable range 0.8 lead~0.8 hysteresis) |
| Off-Grid Output | |
| MaximumOutput Power | 8000W |
| Rated Output Voltage | 230VAC(singlephase) |
| Switching Time | ≤10ms |
| Battery | |
| Battery Voltage Range | 40~60V |
| Maximum Battery Charge Current | 100A |
| Maximum Battery DischargeCurrent | 150A |
The All-In-One Energy Storage System integrates a battery cluster, PCS (Power Conversion System), BMS (Battery Management System), EMS (Energy Management System), and optional components such as STS, MPPT, a control system, distribution system, and fire protection system.
LeFu All-In-One System offers advanced energy management strategies, supports multiple operating modes, and provides optional solar PV integration with a seamless solar-storage design.
Designed for C&I applications, the modular system allows flexible adaptation to diverse scenarios, supports multi-system parallel connections, covers a broader power range, and ensures rapid deployment of new projects with grid-connected and off-grid switching capabilities.
With a highly integrated design,LeFu All-In-One System is safe, reliable, and optimized for easy transportation and installation.

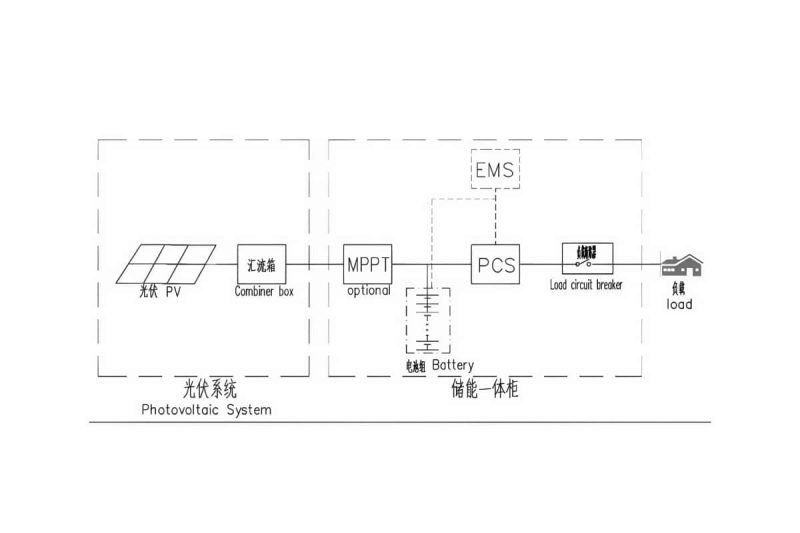

Off-Grid Operation
Depending on the selected off-grid operating mode, PCS connects the battery bank on the DC side, allowing the system to output AC voltage and provide continuous power to the load.
1. The advantages of this energy storage system are as follows:
2. Efficient PWM modulation algorithm to reduce switching losses
3.Flexible installation locations, with a small footprint
4. Detailed management of battery grouping
5. Intelligent control that fully meets grid requirements
6. Modular design of battery modules, allowing for flexible total capacity combinations
7. Rigorous and robust protection system, ensuring safe operation under various working conditions
