Household Lithium Battery Wall-Mounted with 5KWH /10KWH 100aH/200ah
- Model: LF-LPW-5K-1 / LF-LPW-10K-1
- Nominal voltage: 51.2V
- Rated capacity: 100Ah / 200Ah
- Size: 580*440*160mm / 660*570*160mm
- Weight: 55kg+5kg / 88kg+5kg
- Maximum operating current: 100A / 150A
Home energy storage batteries ensure essential devices stay powered during outages, boost home energy independence, significantly lower electricity bills, and optimize energy usage. These batteries make your home more efficient and eco-friendly. We offer comprehensive technical support, flexible OEM/ODM customization, quick quotes, and reliable shipping.
Technical Specification
| Model | LF-LPW-5K-1 | LF-LPW-10K-1 |
| Nominal voltage | 51.2V | 51.2V |
| Rated capacity | 100Ah | 200Ah |
| Size | 580*440*160mm | 660*570*160mm |
| Weight | 55kg±5kg | 88kg±5kg |
| Maximum operating current | 100A | 150A |
| Pack internal resistance | ≤100mΩ | |
| Cycle times | ≥6000 cycles @80%DOD,25°C,0.5C | |
| Design life | ≥10 years | |
| Charging voltage | 57.6V±0.5V(16 series) | |
| Discharge cut-off voltage | 44V±0.5V(16 series) | |
| Charging temperature range | 0℃~60℃(working below 0℃ will affect the performance of battery capacity) | |
| Discharge temperature range | -20℃~60℃(working below 0°℃ will affect the performance of battery capacity) | |
| Storage environment | 0℃~45℃@60%±25%RH | |
| Communication | RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter | |
| Certification | UN38.3,MSDS,CE,UL1973(Cell),IEC62619(Cell) | |

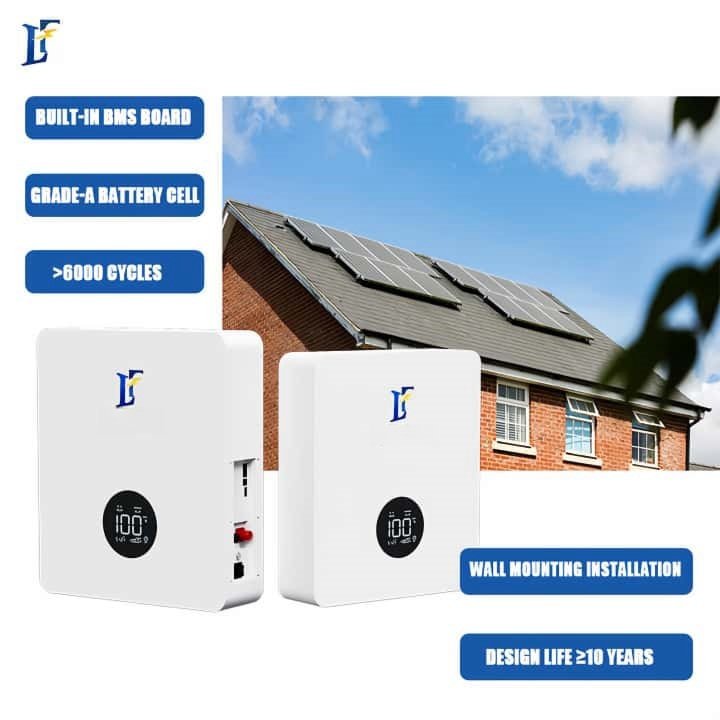

Our Advantages：

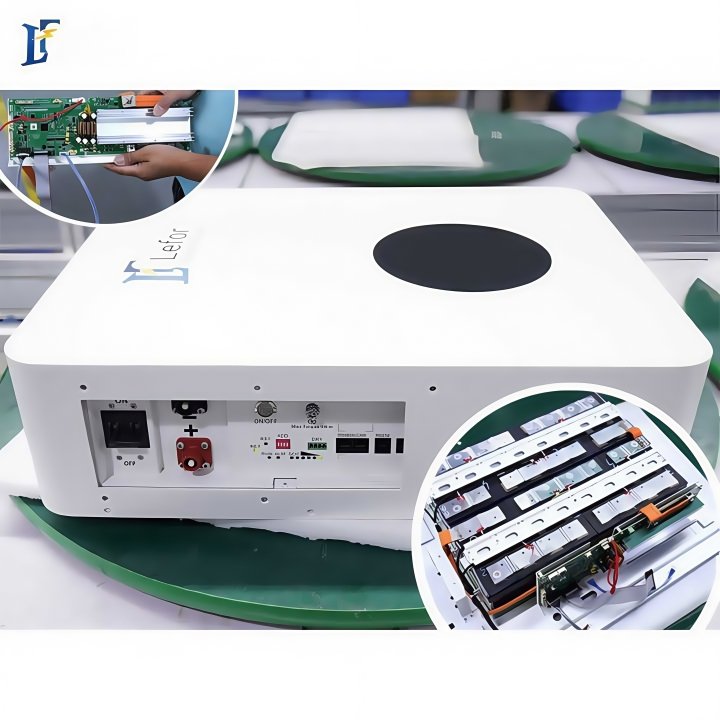

Built-in BMS for Real-Time Monitoring and Protection
Grade-A Battery Cells
Over 6000 Charge/Discharge Cycles
Parallel Connection for Expanded Capacity
Design Life of 10+ Years

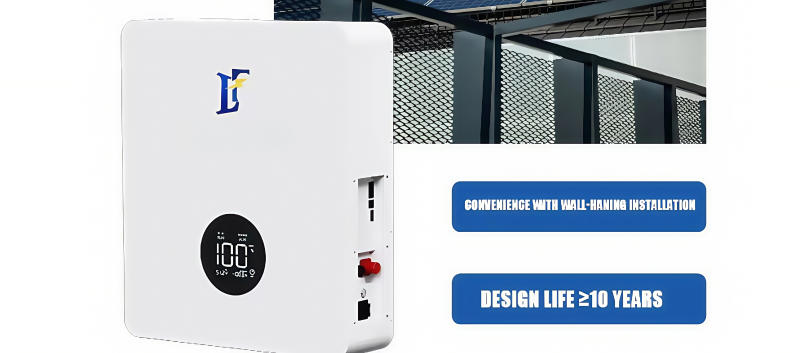

Convenient Wall-Mount Installation
Secure your energy future with our advanced household lithium battery wall-mounted, available in versatile 5kWh and 10kWh models. Operating at a nominal 51.2V, these units deliver robust performance, with the 10kWh model (LF-LPW-10K-1) providing a 200Ah capacity and a powerful 150A maximum operating current. The sleek design features a clear LCD display for real-time monitoring, ensuring a user-friendly experience for any application.
We specialize in supporting our business partners by offering comprehensive OEM/ODM customization to align with your brand. This flexibility makes our Wall-Mounted Energy Storage the ideal, scalable solution for installers and distributors seeking reliable products. Contact us for dedicated technical support and competitive wholesale quotes.
