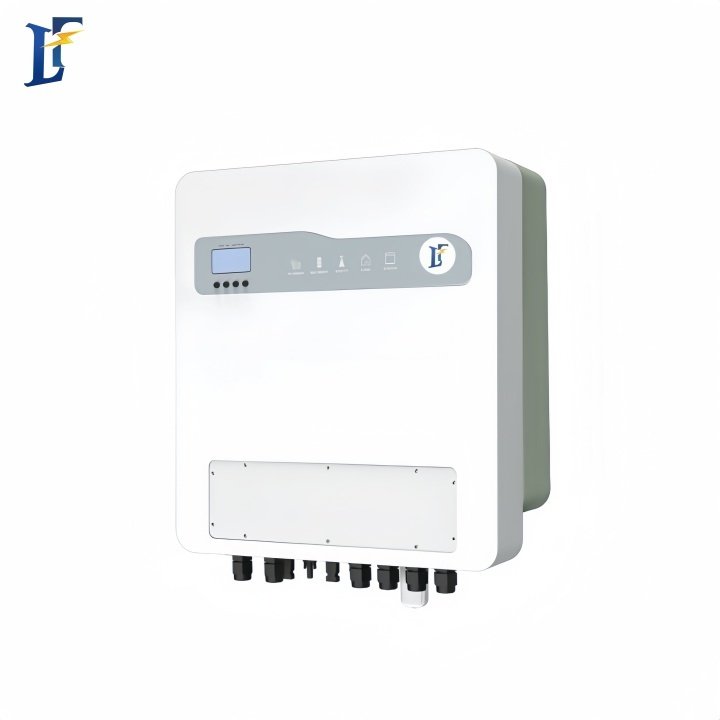

6kw 8kw 10kw 12kw Single Phase Hybrid Inverter 230V Chinese manufacturer
Model ：LF6/8/10/12kw-P1LA
Rated Output Voltage：230V
Rated Output Power:6200W
Max.Output Current:28.7A
Protection Class：IP65
Warranty：5years

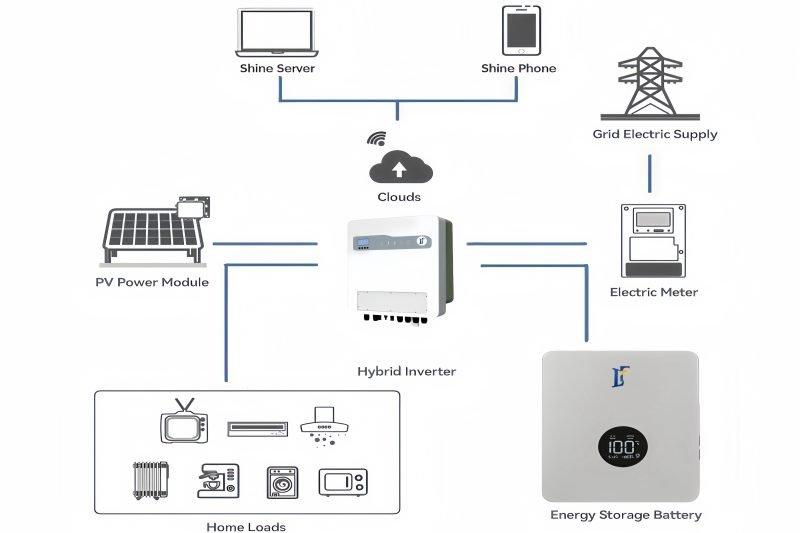

The LF6/8/10/12kw-P1LA hybrid solar inverter offers 6200W power with on-grid, off-grid, and UPS modes, ensuring versatile energy solutions. Equipped with a built-in MPPT charger and IP65 protection, it delivers efficiency and durability for various applications. Compatible with 48V LiFePO4 batteries, it supports parallel connections of up to 6 units for scalable projects. The smart app enables remote diagnostics and updates, simplifying maintenance. Backed by a 5-year warranty, we provide factory direct pricing, customizable options, and streamlined services to boost procurement efficiency and meet your business needs.
| Technical Parameters/Mode | LF-8000TL |
| PVInput(DC) | |
| Maximum Input Power | 10400W |
| Maximum Input Voltage | 500V |
| Starting Voltage | 150V |
| PV Input Voltage Range | 370V(100V~500V) |
| MPPT Voltage Range | 120V~450V |
| MPPT Quantity | 2(1/1) |
| Maximum Input Current | 18A/18A |
| MPPT Operating Voltage Range | 120-430V |
| Output/lnput(AC) | |
| Rated Output Power | 6200W |
| Maximum Output Apparent power | 6600W |
| Rated OutputCurrent | 26.1A |
| Maximum Output Current | 28.7A |
| Grid VoltageType | 230VAC(singlephase) |
| Rated GrdFreauency | 50Hz/60Hz(optional) |
| Total Current Waveform DistortionRate | <3%(rated power) |
| Power Factor Range | >0.99@full power(Adjustable range 0.8 lead~0.8 hysteresis) |
| Off-Grid Output | |
| MaximumOutput Power | 8000W |
| Rated Output Voltage | 230VAC(singlephase) |
| Switching Time | ≤10ms |
| Battery | |
| Battery Voltage Range | 40~60V |
| Maximum Battery Charge Current | 100A |
| Maximum Battery DischargeCurrent | 150A |
High-Performance Single Phase Hybrid Inverter (6kW–12kW)
The LF6/8/10/12kw-P1LA series represents a versatile energy solution designed for modern residential and commercial needs. In particular, this 230V hybrid inverter seamlessly integrates on-grid, off-grid, and UPS modes to provide uninterrupted power. Because it features a rated output power of 6200W and a maximum current of 28.7A, it is capable of handling heavy-duty household loads with ease.
Robust Protection and Battery Compatibility
Furthermore, durability is a core feature of this model, as evidenced by its IP65 protection class. This ensures the unit remains functional even in dusty or wet environments. Regarding energy storage, the system is fully compatible with 48V LiFePO4 batteries. Consequently, users can store excess solar energy efficiently for use during peak hours or outages. Additionally, the built-in MPPT charger optimizes the energy harvest from your solar panels, significantly increasing overall system performance.
Scalability and Smart Management
Another significant advantage is the system’s scalability. Specifically, it supports the parallel connection of up to 6 units, which makes it an ideal choice for large-scale energy projects. Moreover, maintenance is simplified through a smart app that enables remote diagnostics and firmware updates. As a result, you can monitor your energy production and system health from anywhere in the world.
Factory Direct Benefits and Warranty
Finally, we offer this series with a comprehensive 5-year warranty to guarantee long-term reliability. Because we are a leading Chinese manufacturer, we provide factory-direct pricing and highly customizable options. Therefore, we can streamline your procurement process and provide tailored solutions that meet your specific business requirements.
