51.2V 100AH Lifepo4 Home Energy Storage Battery
51.2V 100AH Lifepo4 battery:
Product No.: LF-M16S100BL-V
Voltage: 51.2V
Capacity: 100AH
Rated Energy: 5.12KWH
Efficency: ≥96%
Cell Type: Lifepo4
Experience reliable power with the LF-M16S100BL-V LiFePO4 battery. Boasting 51.2V, 100Ah (5.12kWh), and ≥96% efficiency, it offers exceptional performance and longevity. Ideal for powering homes and offices, from backup power to off-grid solutions. LiFePO4 chemistry ensures safety and thermal stability. We offer customization, wholesale pricing, and OEM/ODM partnerships. Contact us get free quote!
51.2V 100AH Lifepo4 Home Energy Storage Battery Technical Specification
| Model | LF-M16S100BL-V | LF-M16S200BL-V | |
| Basic Characteristics | Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | |
| Efficency | ≥96% | ≥96% | |
| lnner Resistance | 10mQ | 7mQ | |
| Cell Type | LiFePO4 | LiFePO4 | |
| Charging Characteristics | Charge Voltage | 58.4V | 58.4V |
| Standard Charging Current | 20A | 40A | |
| Max.Continuous Charging Current | 100A | 100A | |
| Discharge Characteristics | Standard Discharge Current | 20A | 40A |
| Continuous Discharge Current | 100A | 100A | |
| Peak Discharge Current | 200A(3S) | 200A(3S) | |
| Discharge Cut-off Voltage | 42V | 42V | |
| Environmental Requirements | Charge Temperature Range | 0~60°C | 0~60°C |
| Discharge Temperature Range | -10°C~65°C | -10°C~65°C | |
| Storage Temperature Range | -5~40°C | -5~40°C | |
| Storaqe Humidity | 65±20％HR | 65±20％HR | |
| Mechanical Characteristics | Size(LxWxH) | 445×170×560mm | 445×206×675mm |
| Package Size (L×W×H) | 632×512×255mm | 755×525×395mm | |
| Shell Material | SPCC | SPCC | |
| Net Weight | 43kg | 76kg | |
| Gross Weight | 45kg | 94kg | |
| Package Method | 1pcs per carton | 1pcs per carton | |
| Others Characteristics | Cycle Life | ≥6000 times | ≥6000 times |
| Self Discharge | 2% per month | 2% per month | |
| SOC Indication | LED Light& LCD Screen | LED Light& LCD Screen | |
| Communication Protocol | RS485/CAN | RS485/CAN | |
| Matching Inverter | Growatt, Goodwe, Deye, Luxpower, SRNE etc | ||

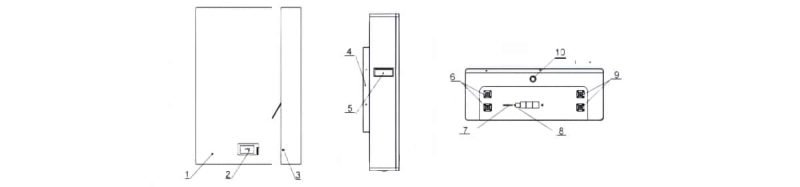

Structural parts description

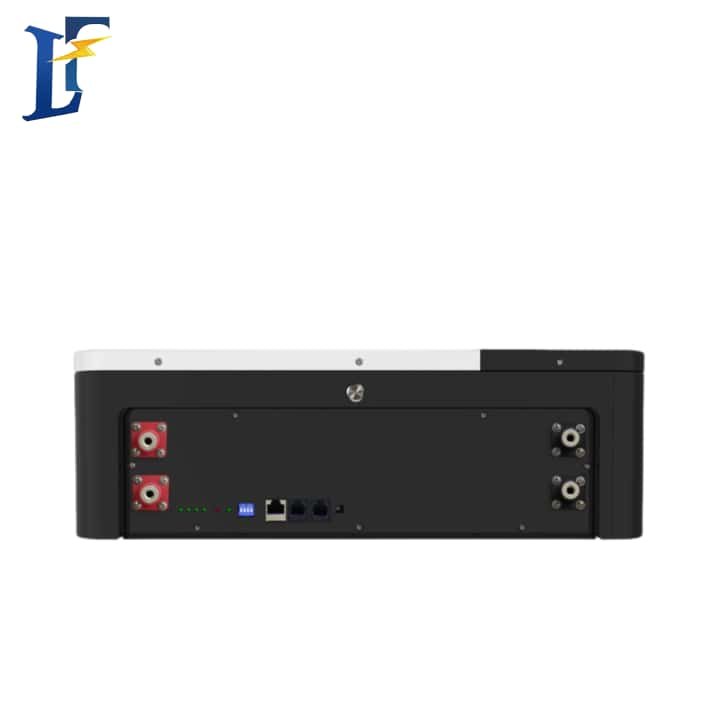

| 1 | White plate | 6 | M6 Positive terminal (2pcs) |
| 2 | LCD display | 7 | Battery indicator |
| 3 | Black plate | 8 | RS485 /CAN |

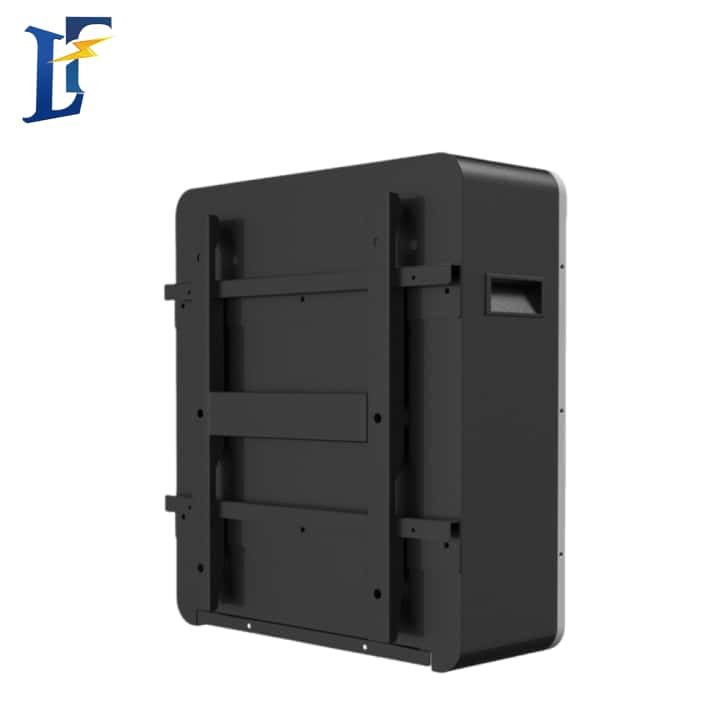

| 4 | Wall mounted bracket | 9 | M6 Negative terminal (2pcs) |
| 5 | Handle | 10 | OFF/ON |
Features
◆ LCD monitor the energy storage power data and operating status.
◆ High-quality LiFePo4 battery, safety, deep cycle and long lifespan.
◆ Product round edge be more safe, avoid accident collision.
◆ External main switch to reduce product power consumption and improve safety.
◆ Wall brackets, which can meet the installation and use of different place.
◆ BMS bulit inside, over-voltage, over-load, over-temperature protection, etc.
◆ Compatible, can be connected to different types of loads within the voltage range.
◆ Support up to 15 modules in parallel.
