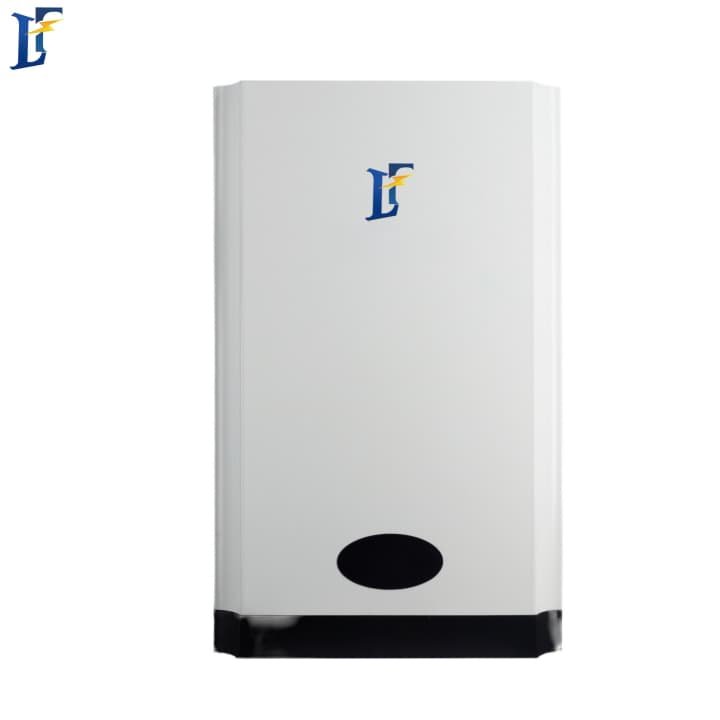

51.2V 100ah 200ah Lifepo4 solar energy storage lithium battery
Model ：LF-ELECUBE-5K
Rated Voltage: 51.2V
Rated capacity：100Ah/200Ah
Configuration：IP65
Cycle LIfe：>6000Times
Rated energy：2.56KWh
51.2V 100Ah/200Ah LiFePO4 battery is a high-performance, low-voltage energy storage solution tailored for off-grid solar systems and industrial applications. With a power of 2.56kWh, over 6000 charge cycles, and an IP65 protection level, it offers exceptional reliability and durability in demanding environments.
Designed for flexibility, this LiFePO4 battery is ideal for wholesalers, household, and renewable energy projects, with customization options to meet specific requirements. Whether for residential backup power or large-scale installations, it pairs seamlessly with solar systems for efficient energy management.
51.2V 100ah 200ah Lifepo4 solar energy storage lithium battery Technical Specification
| Model | LF-LPW-5K-1 | LF-LPW-10K-1 |
| Nominal voltage | 51.2V | 51.2V |
| Rated capacity | 100Ah | 200Ah |
| Size | 580*440*160mm | 660*570*160mm |
| Weight | 55kg±5kg | 88kg±5kg |
| Maximum operating current | 100A | 150A |
| Pack internal resistance | ≤100mΩ | |
| Cycle times | ≥6000 cycles @ 80% DOD,25°C, 0.5C | |
| Design life | ≥10 years | |
| Charging voltage | 57.6V±0.5V(16 series) | |
| Discharge cut-off voltage | 44V±0.5V(16 series) | |
| Charging temperature range | 0ºC~60ºC(working below 0ºC will affect the performance of battery capacity) | |
| Discharge temperature range | -20ºC~60ºC(working below 0ºC will affect the performance of battery capacity) | |
| Storage environment | 0ºC~45ºC @ 60%±25% RH | |
| Communication | RS232-PC,RS485(B)-PC RS485(A)-Inverter, Canbus-Inverter | |
| Certification | UN38.3,MSDS,CE,UL1973(Cell),IEC62619(Cell) | |
| Compatible with 95%Inverter Brands | ||
Powerwall LFP Features
Powerwall LFP 51.2V 200Ah: The Ultimate Home Energy Storage Solution
Take full command of your home’s energy ecosystem with the Powerwall 51.2V 200Ah Lithium Battery. Specifically engineered for modern residential use, this high-capacity LFP (Lithium Iron Phosphate) system captures excess solar energy during the day, ensuring your home remains powered through the night or during unexpected grid outages.
Core Benefits
- High-Efficiency Storage: Boasting a 10.24kWh capacity, this battery is optimized for maximum energy retention, providing consistent high performance for all your household needs.
- Superior LFP Durability: Built to outlast conventional batteries, our LFP chemistry offers a significantly longer cycle life and enhanced thermal safety for decades of reliable use.
- Seamless Backup Power: Protect your home from blackouts. This system delivers dependable, uninterrupted power to keep your essential appliances running when you need them most.
- Sleek, User-Friendly Design: The wall-mounted, space-saving profile is lightweight and easy to handle, making installation and routine maintenance hassle-free.
Achieve Energy Independence
The Powerwall 51.2V 200Ah is more than just a battery—it is a commitment to a smarter, more cost-effective lifestyle. Reduce your grid reliance, slash your utility bills, and ensure your home is powered by clean, sustainable energy 24/7.
