50KW 100KWH Industrial and Commercial energy storage system – container Energy Storage

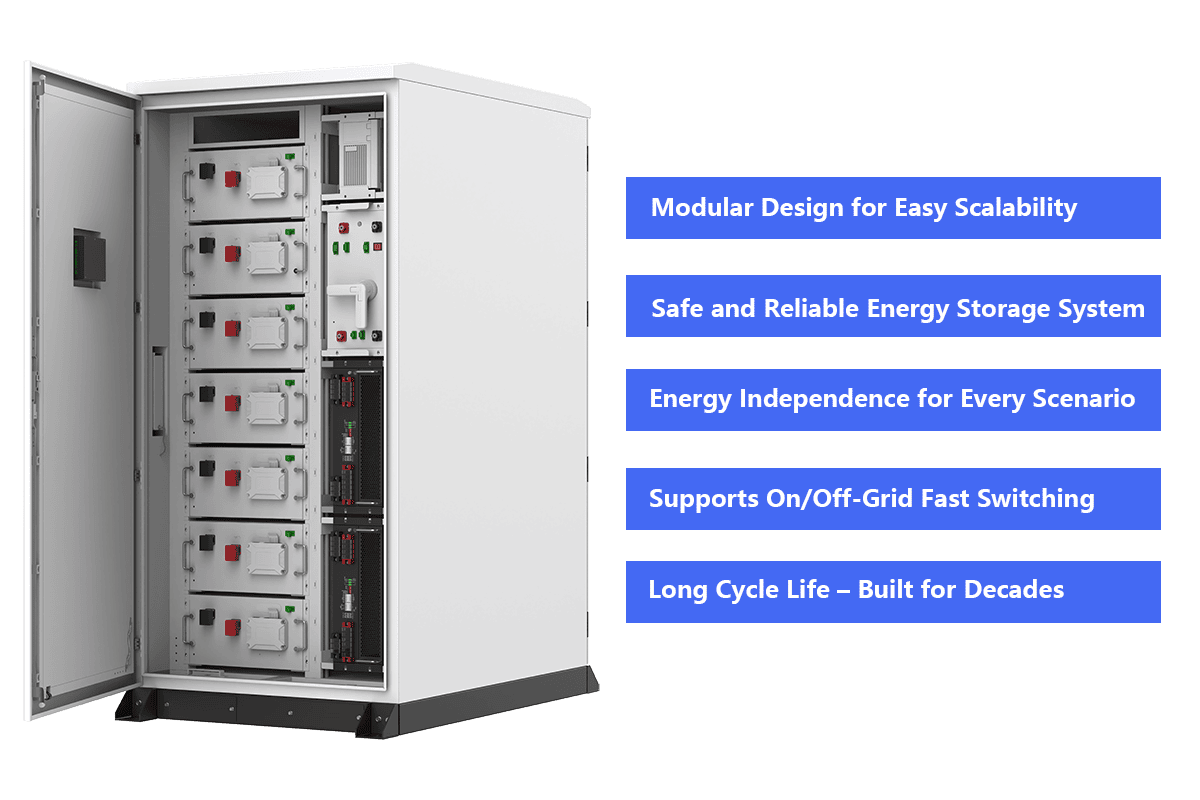

Our energy storage cabinet is a state-of-the-art lithium iron phosphate (LiFePO4) battery system designed for efficient, reliable, and versatile energy storage. It provides an ideal solution for both on-grid and off-grid applications, enabling seamless power supply in various scenarios, including industrial parks, commercial buildings, and remote areas without mains power.

Product Features

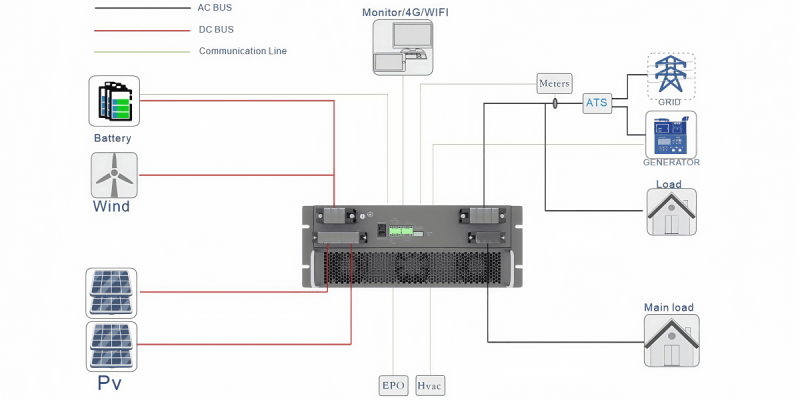

• The communication interface includes multi-channel RS485, CAN, Ethernet, dry contact input and output, as well as other interfaces, all of which support seamless communication with PCS and UPS.
• The internal cell balance function is integrated, and in particular, it allows a maximum balance current of up to 300mA.
• High-precision battery voltage and temperature acquisition is supported.Moreover,offering ±3mV and ±1ºC accuracy, which in turn ensures consistent and reliable monitoring.
• Automatic circulation control is provided, and in addition, automatic parallel and offline control makes it easy to connect multiple lithium battery systems in parallel.
• Self-inspection and running status detection functions are built in, which, when paired with the HMI display, make system operation information clear at a glance.
• When used in parallel, each system only needs to configure one SBMS display (optional).
• Furthermore,support PV,Max PV power is 19.2KW,have two-channel PV
• Support off-online grid,switch time less than 5ms
• Besides,Perfect high and low voltage crossing function, island protection, black start and other functions;
• Also,support 15 PCS inverter in parallel use
• Similarly,bulit-in EMS
• Finally support GEN,need GEN give dry contact signal

Advanced Communication Interfaces

Not only equipped with multi-channel RS485, CAN, Ethernet, but also dry contact interfaces.
Namely supports seamless communication with PCS (Power Conversion Systems) and UPS (Uninterruptible Power Supplies).
