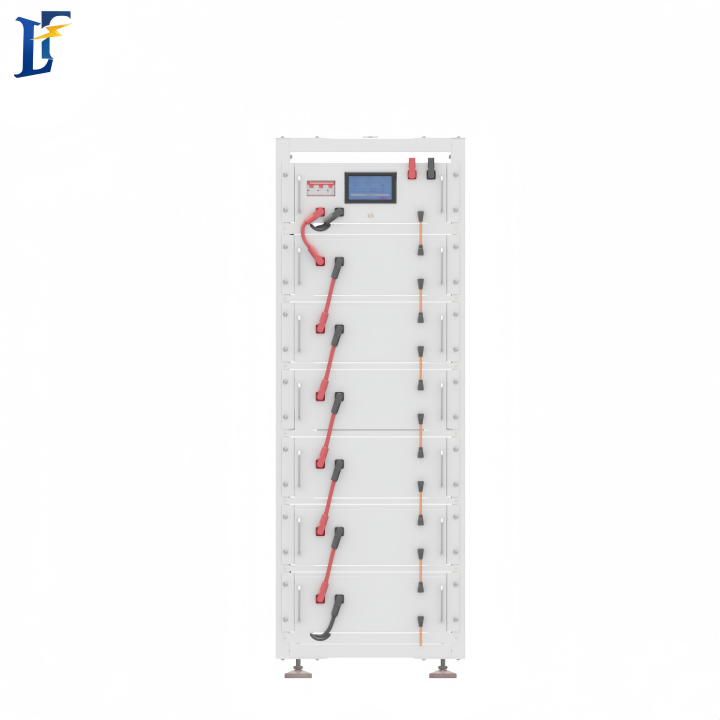

30kWh 288V LiFePO4 High Voltage Battery Rack for Solar & Commercial Energy Storage
Product No.: LF96S100BL-U
Voltage: 288V (307.2V)
Capacity: 100AH
Lifespan: 8000 cycles time
Communication: CAN & RS485
LF-LF96S100BL-U – 30kWh 288V LiFePO₄ Modular Battery Rack
A high-voltage (288V/307V max) LiFePO₄ battery system with modular rack design, scalable, designed for larger homes, small businesses, and solar energy storage. Compatible with GoodWe, Growatt, Deye, Huawei, and more. Built by Lefu, a professional energy solution provider. Contact us for details.
30kWh 288V LiFePO4 High Voltage Battery Rackfor Solar & Commercial Energy Storage Technical Specification
| Product Description | Product Parameters | ||||
| Product Model | LF64S100BL-U | LF96S100BL-U | LF128S100BL-U | LF160S100BL-U | LF192S100BL-U |
| Number Of Modules | 4 | 6 | 8 | 10 | 12 |
| Energy Capacity (Ah) | 100 | 100 | 100 | 100 | 100 |
| Rated Voltage (V) | 192 | 288 | 384 | 480 | 576 |
| Actual Voltage (V) | 204.8 | 307.2 | 409.6 | 512 | 614.4 |
| Rated Energy (KWh) | 20.48 | 30.72 | 40.96 | 51.2 | 61.44 |
| Product Dimensions (LxWxHmm) | 548x584x1500 | 548x584x1500 | 548x584x1950 | 548x584x2300 | 548x584x2750 |
| Net Wveight (kg) | 235 | 340 | 425 | 510 | 595 |
| Standard Charge Current (A) | 20 | 20 | 20 | 20 | 20 |
| Maximum Discharge Curent (A) | 100 | 100 | 100 | 100 | 100 |
| IP Protection | 21 | 21 | 21 | 21 | 21 |
30kWh 288V LiFePO4 High Voltage Battery Rack
LF-LF96S100BL-U – 30kWh 288V Modular LiFePO4 Battery Rack System for Solar & Commercial Use
The LF-LF96S100BL-U is a high-voltage LiFePO₄ modular battery rack system, delivering 288V (nominal) / 307V (max) and a total capacity of 30kWh. Designed for larger residential systems, small commercial buildings, and off-grid solar applications, this battery is manufactured by Lefu – a trusted energy storage solution provider.
✅ Key Features:
- 🔋 High Voltage (288V) – Ideal for hybrid and off-grid solar inverters
- 🧱 Modular Rack Design – Scalable and easy to integrate
- ⚡ Grade A LiFePO₄ Cells – Safe, stable, and long-lasting
- 🛡️ Advanced BMS – Built-in protection for voltage, current, temperature, and SOC
- 🌡️ Wide Operating Temperature – Designed for tough environments
- 🔄 Long Cycle Life – Over 6,000 cycles at 80% DoD
- 🔌 Smart Communication – Supports CAN and RS485 protocols
🔗 Inverter Compatibility:
Fully compatible with popular hybrid inverter brands including: GoodWe, Growatt, Deye, Huawei, and others.
📞 Custom Solutions Available
Need a custom configuration for your project? Contact us today for OEM/ODM options, system design support, and distributor pricing.
Product Performance:
- Nominal Voltage: 288V
- Actual Voltage: 307.2V
- Nominal Capacity: 100Ah
- Operating Voltage: 252V-350.4V
- Standard Charging Current: 100A
- Maximum Charging/Discharging Current: 100A
- Operating Temperature Range: 0-40°C (Charging), -20-40°C (Discharging)
- Storage Temperature: -10°C to 35°C (1 month), 25±2°C (3 months), 65%±20%RH
- Cycle Life: 6000 cycles @25°C, 50A charge/discharge current, 80% DOD, Standard capacity retention 80%
- Communication Method: CAN & RS485
- Waterproof Rating: IP21
- Humidity Range: 5-95%
- Net Dimensions: 548x584x1500
- Net Weight: 340kg
