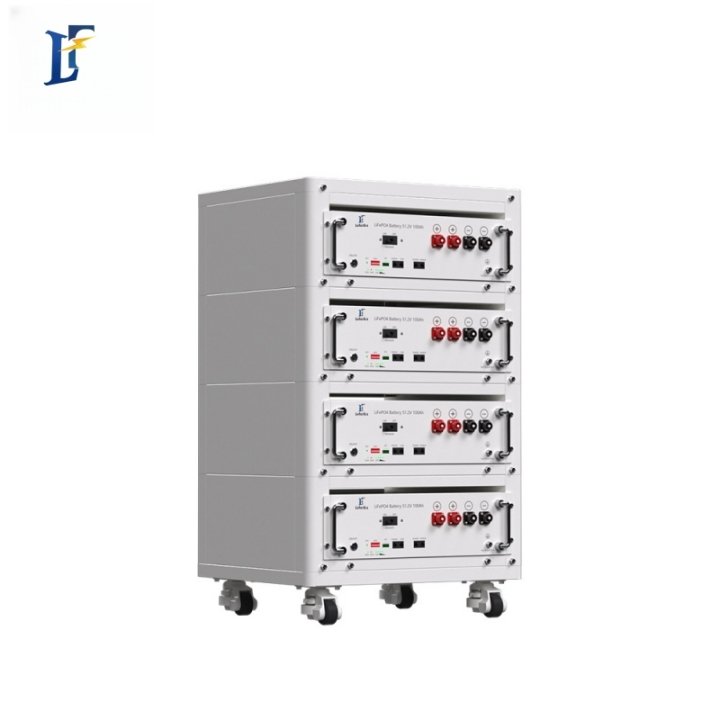

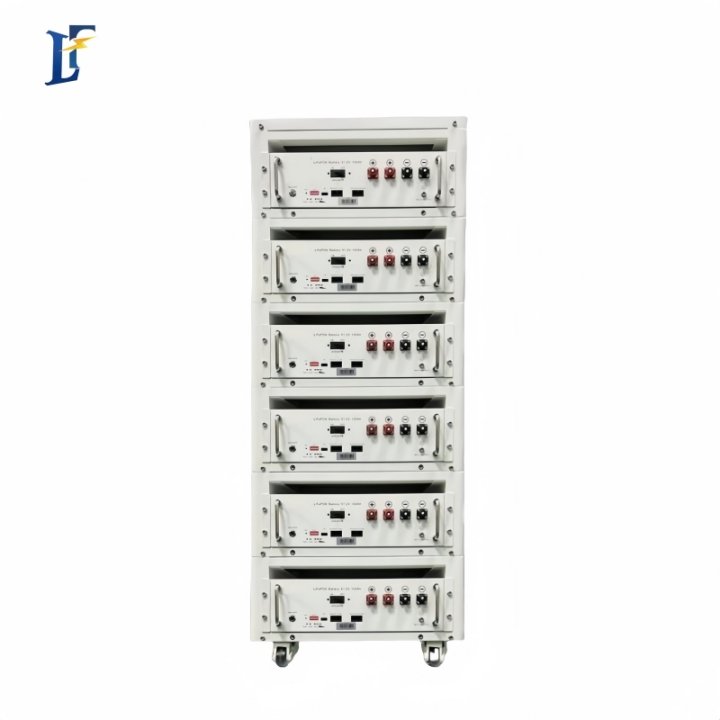

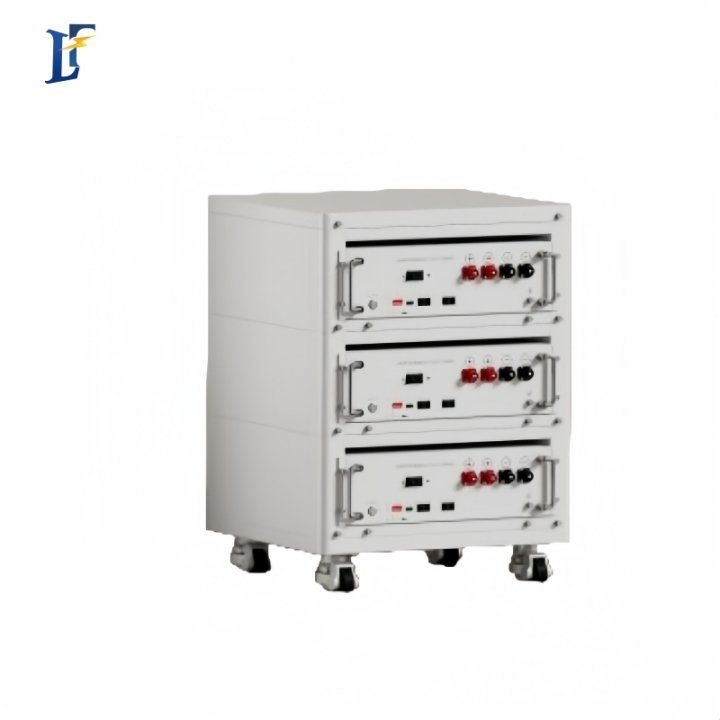

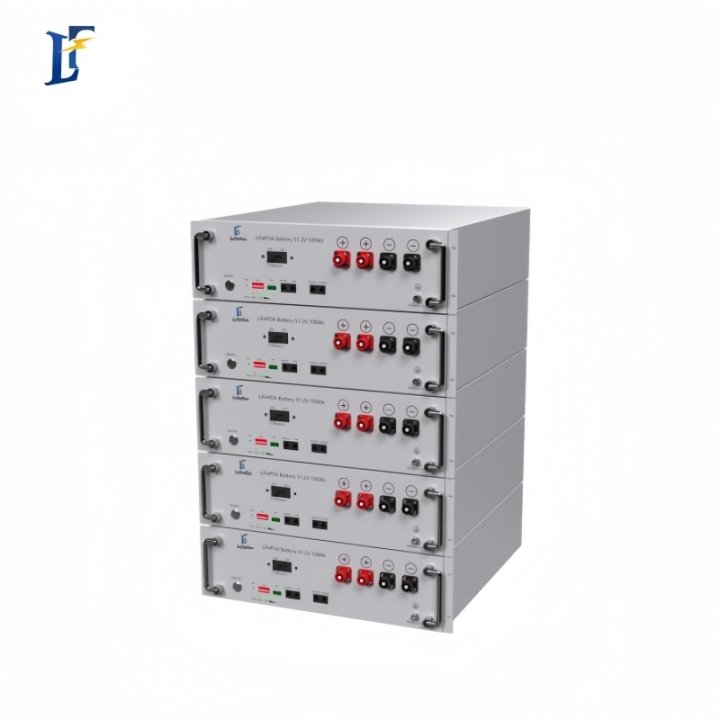

10kwh stacked energy storage liFePo4 batteries Pack

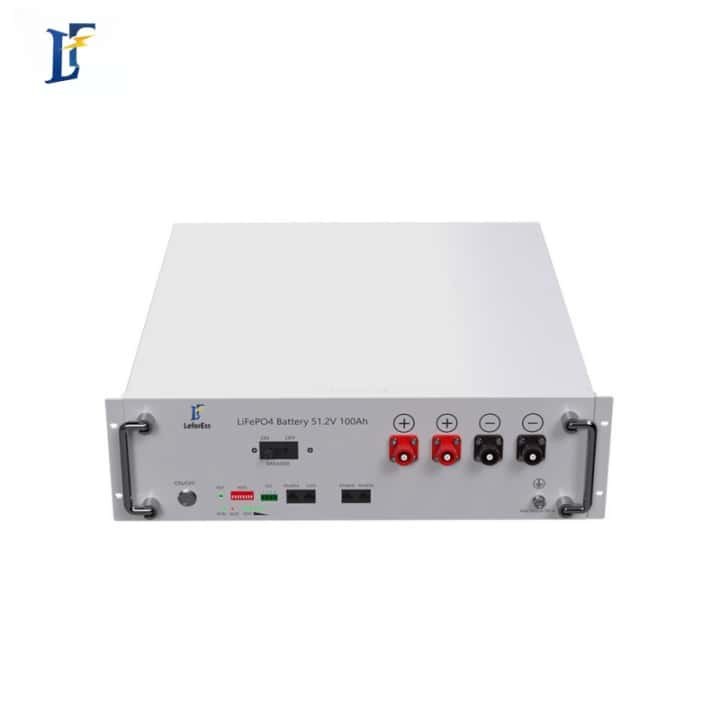

10kWh 51.2V 200Ah stackable energy storage battery utilizes advanced LiFePO4 cells for high energy density, long cycle life, and superior safety. This stackable energy storage battery easily scales for home or business use. We offer customizable solutions and a one-stop service, improving procurement efficiency. The integrated BMS ensures optimal performance and peace of mind.
Product No.: LF-LPLPG3U511002-1
Voltage: 51.2V
Capacity: 100AH*2
Rated Energy: 10.24KWH
10kwh Stacked Energy Storage Lithium Iron Phosphate Batteries Technical Specification
| Model Number | LF-LPLPG3U511002-1 | LF-LPLPG3U511003-1 | LF-LPLPG3U511004-1 | LF-LPLPG3U511005-1 | LF-LPLPG3U511006-1 |
| Nominal voltage | 51.2V | ||||
| Rated Capacity | 200AH | 300AH | 400AH | 500AH | 600AH |
| Rated Energy | 10KWH | 15KWH | 20KWH | 25KWH | 30KWH |
| Size(mm) | 550*480*570 | 550*480*785 | 550*480*1000 | 550*480*1215 | 550*480*1430 |
| Max.Operating Current | 100A | 200A | 300A | 400A | 400A |
| Deisgn Life | ≥10 Years | ||||
| Charging Voltage | 54V±0.5V(15series);57.6V±0.5V(16series) | ||||
| Discharge Cut-off Voltage | 41.2V±0.5V(15series);44V±0.5V(16series) | ||||
| Cycle Times | ≥6000 cycles | ||||
| Charging Temperature Range | 0°- 55° | ||||
| Discharging Temperature Range | -20°- 60° | ||||
| Storage Environment | 5°- 45°@ 10% – 80%RH | ||||
| Pack Internal Resistance | ≤100Ω | ||||
| Communication | RS232-PC, RS485(B)-PC, RS485(A)-Inverter,Canbus-Inverter | ||||
| Certificates | UN38.3、MSDS、CE、UL9540A、UL1973、IEC62619（CB） | ||||
Our Advantages

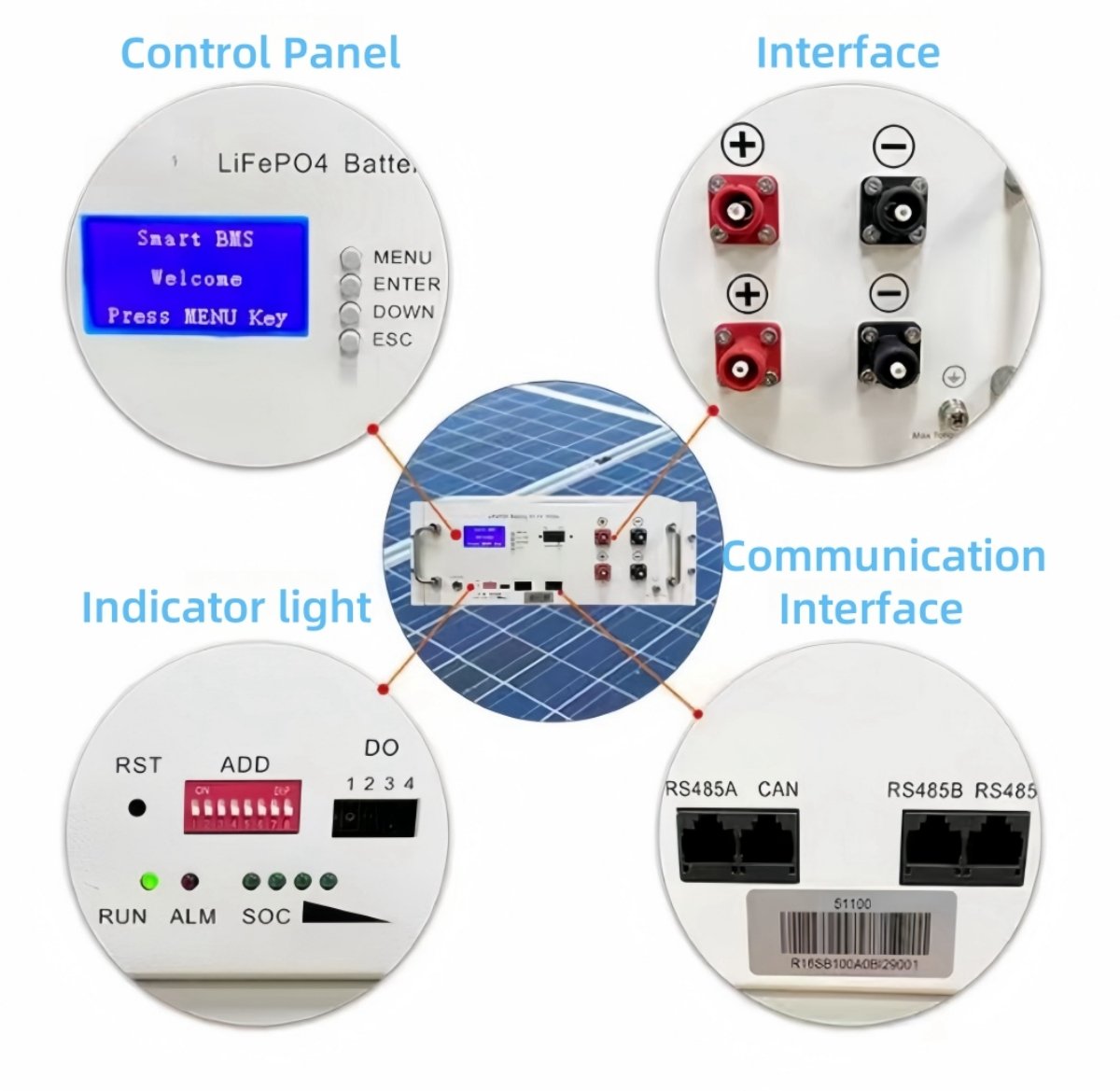

· Built-in BMS for Real-Time Monitoring and Protection
Our Energy Storage Battery is equipped with an advanced Battery Management System (BMS). This cutting-edge technology offers real-time data monitoring, ensuring the utmost safety by safeguarding the battery against overcharging, deep discharging, and overheating. With this sophisticated system, you can trust in the reliability and longevity of your energy storage solution, delivering peace of mind and seamless performance.
· Grade-A Battery Cells
Crafted with high-quality Grade-A battery cells, our product promises exceptional energy density, unyielding stable performance, and unmatched reliability. Each unit ensures consistent power output, maintaining peak performance over time. This ensures you receive the best energy storage experience, tailored for both home and commercial use.
ensuring top-tier power output.
· Over 6000 Charge/Discharge Cycles
Experience the durability of our battery with more than 6000 charge and discharge cycles. It offers enduring, reliable power delivery, maximizing your investment’s value by extending its service life beyond expectations. This ensures sustained energy efficiency and significantly reduced lifecycle costs.

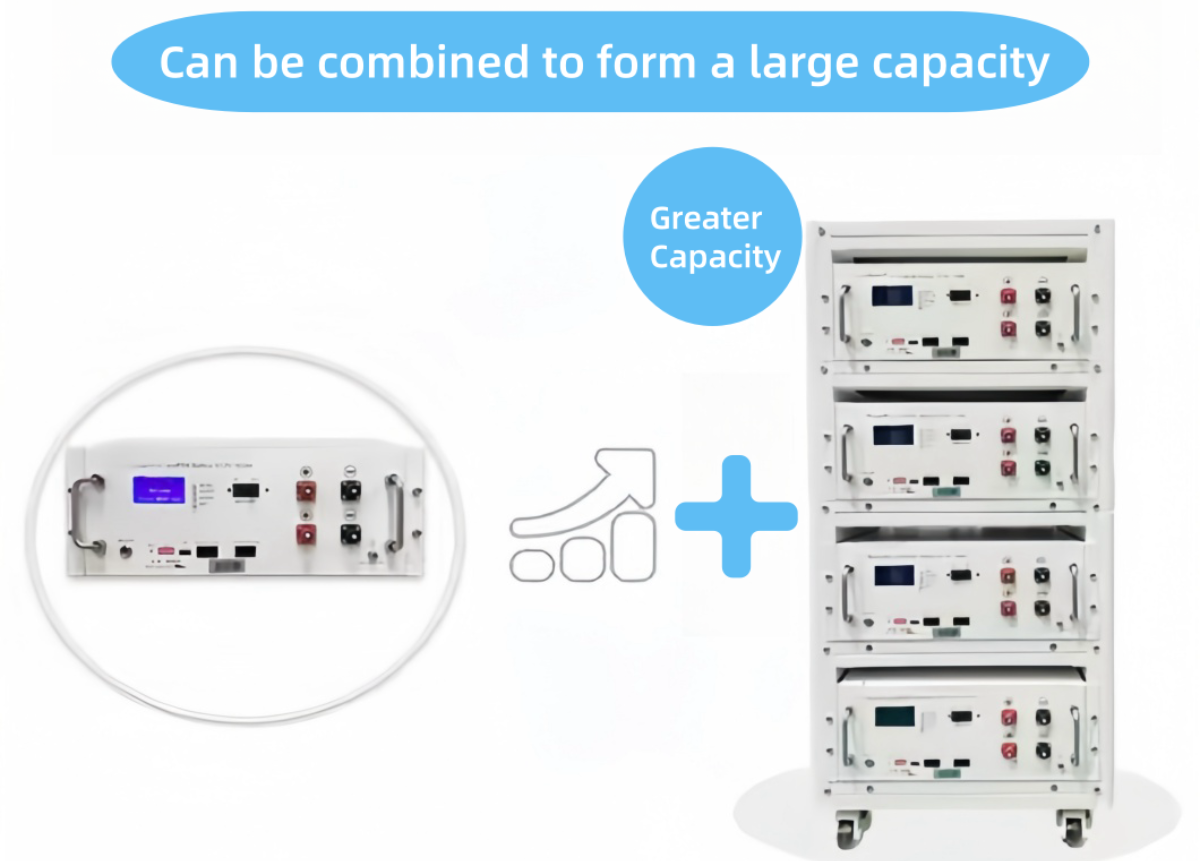

· Parallel Connection for Expanded Capacity
Easily connect multiple battery modules in parallel to flexibly expand capacity, catering to a wide range of energy demands. This adaptability allows you to tailor energy solutions to precisely meet your needs, whether for growing families or expansive commercial operations.
· Design Life of 10+ Years
Engineered for exceptional longevity, our battery boasts a lifespan of over 10 years. This reduces replacement frequency and lowers maintenance costs, ensuring years of dependable performance and peace of mind. Embrace sustainable energy solutions with confidence in long-term reliability.
· Convenient Wall-Mount Installation
Our innovative space-saving wall-mount design facilitates quick and simple installation, perfectly suited for both residential and commercial environments. It optimizes space utilization while delivering seamless energy solutions, transforming any space into a powerhouse of energy efficiency.
